Pdu Class Reference

Pdu class... More...

#include <pdu.h>

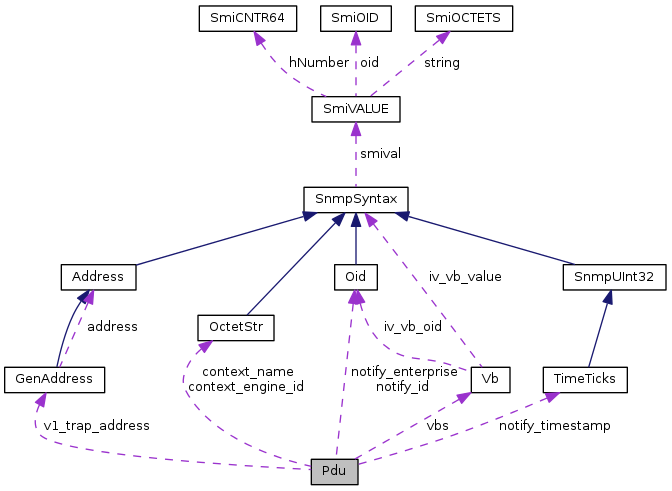

Collaboration diagram for Pdu:

Public Member Functions
	Pdu ()
	Constructor no args. More...
	Pdu (Vb *pvbs, const int pvb_count)
	Constructor with vbs. More...
	Pdu (const Pdu &pdu)
	Constructor with another Pdu instance. More...
virtual	~Pdu ()
	Destructor. More...
Pdu &	operator= (const Pdu &pdu)
	Overloaded assignment operator. More...
Pdu &	operator+= (const Vb &vb)
	Append a vb to the pdu. More...
Pdu *	clone () const
	Clone a Pdu object. More...
int	get_vblist (Vb *pvbs, const int pvb_count) const
	Get Pointers to all Vbs from Pdu. More...
int	set_vblist (Vb const *pvbs, const int pvb_count)
	Deposit all Vbs to Pdu. More...
int	get_vb (Vb &vb, const int index) const
	Get a particular Vb. More...
const Vb &	get_vb (const int index) const
	Return a reference to a particular Vb. More...
int	set_vb (Vb const &vb, const int index)
	Set a particular vb. More...
int	get_vb_count () const
	Get the number of vbs. More...
Vb &	operator[] (const int i)
	Get a Vb. More...
int	get_error_status () const
	Get the error status. More...
void	set_error_status (const int err)
	Set the error status. More...
void	clear_error_status ()
	Clear the error status. More...
int	get_error_index () const
	Get the error index. More...
void	set_error_index (const int index)
	Set the error index. More...
void	clear_error_index ()
	Clear the error index. More...
void	clear_error ()
	Clear error status and error index. More...
unsigned long	get_request_id () const
	Get the request id. More...
void	set_request_id (const unsigned long rid)
	Set the request id. More...
unsigned short	get_type () const
	Get the pdu type. More...
void	set_type (unsigned short type)
	Set the pdu type. More...
bool	valid () const
	Returns validity of Pdu instance. More...
int	trim (const int count=1)
	Trim off vbs. More...
int	delete_vb (const int position)
	Delete a Vb anywhere within the Pdu. More...
void	set_notify_timestamp (const TimeTicks &ts)
	Set notify timestamp. More...
void	get_notify_timestamp (TimeTicks &ts) const
	Get notify timestamp. More...
bool	set_notify_id (const Oid &id)
	Set the notify id. More...
bool	get_notify_id (Oid &id) const
	Get the notify id. More...
bool	set_notify_enterprise (const Oid &e)
	Set the notify enterprise. More...
bool	get_notify_enterprise (Oid &e) const
	Get the notify enterprise. More...
void	set_security_level (const int level)
	Set the security level that should be used when this Pdu is sent. More...
int	get_security_level () const
	Return the security level of the Pdu. More...
bool	set_context_name (const OctetStr &name)
	Set the context name of the Pdu. More...
bool	set_context_name (const char *name)
	Set the context name of the Pdu. More...
bool	get_context_name (OctetStr &name) const
	Get the context name of the Pdu. More...
const OctetStr &	get_context_name () const
	Get the context name of the Pdu. More...
bool	set_context_engine_id (const OctetStr &id)
	Set the context engine id of the Pdu. More...
bool	set_context_engine_id (const char *id)
	Set the context engine id of the Pdu. More...
bool	get_context_engine_id (OctetStr &id) const
	Get the context engine id of the Pdu. More...
const OctetStr &	get_context_engine_id () const
	Get the context engine id of the Pdu. More...
void	set_message_id (const unsigned long msg_id)
	Set the SNMPv3 message id (msgID) More...
unsigned long	get_message_id () const
	Get the SNMPv3 message id (msgID) More...
void	set_maxsize_scopedpdu (unsigned long l)
	Set the maximum size of the scoped pdu to be included in a possible response message. More...
unsigned long	get_maxsize_scopedpdu () const
	Get the maximum size of the scoped pdu to be included in a possible response message. More...
int	get_v1_trap_address (GenAddress &address) const
	Get the SNMPv1 trap address. More...
int	set_v1_trap_address (const Address &address)
	Set the SNMPv1 trap address. More...
int	get_asn1_length () const
	Return the length of the encoded vbs with pdu header. More...
void	clear ()
	Clear the Pdu contents (destruct and construct in one go) More...

Static Public Member Functions
static bool	match_type (const int request, const int response)
	Does the type of response match the type of request. More...

Protected Member Functions
bool	extend_vbs ()
	Extend the vbs array. More...

Protected Attributes
Vb **	vbs
int	vbs_size
int	vb_count
int	error_status
int	error_index
bool	validity
unsigned long	request_id
unsigned short	pdu_type
TimeTicks	notify_timestamp
Oid	notify_id
Oid	notify_enterprise
GenAddress	v1_trap_address
int	v1_trap_address_set
int	security_level
unsigned long	message_id
unsigned long	maxsize_scopedpdu
OctetStr	context_name
OctetStr	context_engine_id

Detailed Description

Pdu class...

Definition at line 81 of file pdu.h.

Constructor & Destructor Documentation

Pdu::Pdu

(

)

Constructor no args.

This constructor creates a valid empty Pdu object.

Pdu::Pdu	(	Vb *	pvbs,
		const int	pvb_count
	)

Constructor with vbs.

The Pdu class does not take ownership of the array and the Vb objects, so if these were allocated with new, they must be freed by te user with delete.

Parameters

pvbs	- Array of pointers to Vb objects
pvb_count	- Length of the array

Pdu::Pdu ( const Pdu &  pdu )

inline

Constructor with another Pdu instance.

Parameters

pdu	- source pdu object

Definition at line 109 of file pdu.h.

virtual Pdu::~Pdu ( )

virtual

Destructor.

Member Function Documentation

void Pdu::clear

(

)

Clear the Pdu contents (destruct and construct in one go)

void Pdu::clear_error ( )

inline

Clear error status and error index.

Definition at line 257 of file pdu.h.

void Pdu::clear_error_index ( )

inline

Clear the error index.

Definition at line 252 of file pdu.h.

void Pdu::clear_error_status ( )

inline

Clear the error status.

Definition at line 233 of file pdu.h.

Pdu* Pdu::clone ( ) const

inline

Clone a Pdu object.

Returns

Pointer to a newly created Pdu object, that is identical to this

Definition at line 135 of file pdu.h.

int Pdu::delete_vb

(

const int

position

)

Delete a Vb anywhere within the Pdu.

Parameters

position

- Delete the Vb at this position (starting with 0)

Returns

TRUE on success

bool Pdu::extend_vbs ( )

protected

Extend the vbs array.

Returns

true on success

int Pdu::get_asn1_length

(

)

const

Return the length of the encoded vbs with pdu header.

Note

this method wll not work for v1 traps.

bool Pdu::get_context_engine_id ( OctetStr &  id ) const

inline

Get the context engine id of the Pdu.

Parameters

id	- Object for the context engine

Definition at line 416 of file pdu.h.

const OctetStr& Pdu::get_context_engine_id ( ) const

inline

Get the context engine id of the Pdu.

Returns

- Return the context engine id as an OctetStr

Definition at line 424 of file pdu.h.

bool Pdu::get_context_name ( OctetStr &  name ) const

inline

Get the context name of the Pdu.

Parameters

name	- Object fot the context name

Definition at line 385 of file pdu.h.

References OctetStr::valid().

const OctetStr& Pdu::get_context_name ( ) const

inline

Get the context name of the Pdu.

Returns

- Return the context name as an OctetStr

Definition at line 393 of file pdu.h.

int Pdu::get_error_index ( ) const

inline

Get the error index.

Returns

The SNMP error index

Definition at line 240 of file pdu.h.

int Pdu::get_error_status ( ) const

inline

Get the error status.

Returns

The SNMP error status

Definition at line 221 of file pdu.h.

unsigned long Pdu::get_maxsize_scopedpdu ( ) const

inline

Get the maximum size of the scoped pdu to be included in a possible response message.

Returns

- the maximum size

Definition at line 454 of file pdu.h.

unsigned long Pdu::get_message_id ( ) const

inline

Get the SNMPv3 message id (msgID)

Returns

- the message id of the received message

Definition at line 438 of file pdu.h.

bool Pdu::get_notify_enterprise ( Oid &  e ) const

inline

Get the notify enterprise.

Returns

true if the get succeeded.

Definition at line 343 of file pdu.h.

References Oid::len().

bool Pdu::get_notify_id ( Oid &  id ) const

inline

Get the notify id.

Returns

true if the get succeeded.

Definition at line 327 of file pdu.h.

void Pdu::get_notify_timestamp ( TimeTicks &  ts ) const

inline

Get notify timestamp.

Definition at line 312 of file pdu.h.

unsigned long Pdu::get_request_id ( ) const

inline

Get the request id.

Returns

The SNMP request id

Definition at line 264 of file pdu.h.

int Pdu::get_security_level ( ) const

inline

Return the security level of the Pdu.

Returns

- the security level

Definition at line 362 of file pdu.h.

unsigned short Pdu::get_type ( ) const

inline

Get the pdu type.

Definition at line 276 of file pdu.h.

int Pdu::get_v1_trap_address

(

GenAddress &

address

)

const

Get the SNMPv1 trap address.

int Pdu::get_vb	(	Vb &	vb,
		const int	index
	)		const

Get a particular Vb.

Parameters

vb	- Object to store the vb
index	- The vb to get (zero is the first vb)

Returns

TRUE on success

const Vb& Pdu::get_vb ( const int  index ) const

inline

Return a reference to a particular Vb.

Note

Before calling this method, make sure that there is a Vb using get_vb_count().

Parameters

index

- The Vb to return starting with 0.

Returns

A const reference to the Vb

Definition at line 186 of file pdu.h.

int Pdu::get_vb_count ( ) const

inline

Get the number of vbs.

Returns

The number of Vb objects within the pdu.

Definition at line 205 of file pdu.h.

int Pdu::get_vblist	(	Vb *	pvbs,
		const int	pvb_count
	)		const

Get Pointers to all Vbs from Pdu.

The caller has to allocate the array. The returned pointers point to the Vb objects that are internally used by the pdu. So any changes to the returned Vb objects will change the pdu. If the pdu is modified (e.g. through Pdu::trim()) afterwards, the returned array will contain invalid pointers.

Parameters

pvbs	- Array of empty pointers of size pvb_count
pvb_count	- Amount of Vb pointers to get

Returns

TRUE on success

static bool Pdu::match_type ( const int  request, const int  response  )

static

Does the type of response match the type of request.

Pdu& Pdu::operator+=

(

const Vb &

vb

)

Append a vb to the pdu.

Parameters

vb	- The Vb that should be added (as last vb) to the pdu

Pdu& Pdu::operator=

(

const Pdu &

pdu

)

Overloaded assignment operator.

Parameters

pdu	- Pdu that should be assigned to this object

Vb& Pdu::operator[] ( const int  i )

inline

Get a Vb.

Note

The index has to be checked by the caller.

Parameters

i	zero based index

Definition at line 214 of file pdu.h.

bool Pdu::set_context_engine_id ( const OctetStr &  id )

inline

Set the context engine id of the Pdu.

Parameters

id	- The new context engine id

Definition at line 400 of file pdu.h.

bool Pdu::set_context_engine_id ( const char *  id )

inline

Set the context engine id of the Pdu.

Parameters

id	- The new context engine id

Definition at line 408 of file pdu.h.

bool Pdu::set_context_name ( const OctetStr &  name )

inline

Set the context name of the Pdu.

Parameters

name	- The context name

Definition at line 369 of file pdu.h.

References OctetStr::valid().

bool Pdu::set_context_name ( const char *  name )

inline

Set the context name of the Pdu.

Parameters

name	- The context name

Definition at line 377 of file pdu.h.

void Pdu::set_error_index ( const int  index )

inline

Set the error index.

Parameters

err	- The new SNMP error index.

Definition at line 247 of file pdu.h.

void Pdu::set_error_status ( const int  err )

inline

Set the error status.

Parameters

err	- The new SNMP error status.

Definition at line 228 of file pdu.h.

void Pdu::set_maxsize_scopedpdu ( unsigned long  l )

inline

Set the maximum size of the scoped pdu to be included in a possible response message.

Parameters

l	- the maximum size

Definition at line 446 of file pdu.h.

void Pdu::set_message_id ( const unsigned long  msg_id )

inline

Set the SNMPv3 message id (msgID)

Parameters

msg_id

- the message id of the received message

Definition at line 431 of file pdu.h.

bool Pdu::set_notify_enterprise ( const Oid &  e )

inline

Set the notify enterprise.

Returns

true if the set succeeded.

Definition at line 335 of file pdu.h.

References Oid::len().

bool Pdu::set_notify_id ( const Oid &  id )

inline

Set the notify id.

Returns

true if the set succeeded.

Definition at line 319 of file pdu.h.

void Pdu::set_notify_timestamp ( const TimeTicks &  ts )

inline

Set notify timestamp.

Definition at line 307 of file pdu.h.

void Pdu::set_request_id ( const unsigned long  rid )

inline

Set the request id.

Parameters

rid	- The new SNMP request id

Definition at line 271 of file pdu.h.

void Pdu::set_security_level ( const int  level )

inline

Set the security level that should be used when this Pdu is sent.

The default security level of a Pdu is SNMP_SECURITY_LEVEL_NOAUTH_NOPRIV.

Parameters

level

- One of SNMP_SECURITY_LEVEL_NOAUTH_NOPRIV, SNMP_SECURITY_LEVEL_AUTH_NOPRIV, SNMP_SECURITY_LEVEL_AUTH_PRIV

Definition at line 355 of file pdu.h.

void Pdu::set_type ( unsigned short  type )

inline

Set the pdu type.

Definition at line 281 of file pdu.h.

int Pdu::set_v1_trap_address

(

const Address &

address

)

Set the SNMPv1 trap address.

int Pdu::set_vb	(	Vb const &	vb,
		const int	index
	)

Set a particular vb.

If this method returns FALSE, the pdu has not been modified.

Parameters

vb	- Source vb
index	- The vb to set (zero is the first vb)

Returns

TRUE on success

int Pdu::set_vblist	(	Vb const *	pvbs,
		const int	pvb_count
	)

Deposit all Vbs to Pdu.

The vb objects of the pdu will be freed and the objects from the array will be cloned and added to the pdu. If this method returns FALSE, the pdu will not conatin any Vb objects.

Parameters

pvbs	- Array of valid pointers of size pvb_count
pvb_count	- Amount of Vb pointers i the array

Returns

TRUE on success

int Pdu::trim

(

const int

count = 1

)

Trim off vbs.

Parameters

count

- number of vbs to trim of, starting with the last

Returns

TRUE on success, FALSE if nothing was done

bool Pdu::valid ( ) const

inline

Returns validity of Pdu instance.

Definition at line 286 of file pdu.h.

Member Data Documentation

OctetStr Pdu::context_engine_id

protected

Definition at line 517 of file pdu.h.

OctetStr Pdu::context_name

protected

Definition at line 516 of file pdu.h.

int Pdu::error_index

protected

Definition at line 499 of file pdu.h.

int Pdu::error_status

protected

Definition at line 498 of file pdu.h.

unsigned long Pdu::maxsize_scopedpdu

protected

Definition at line 515 of file pdu.h.

unsigned long Pdu::message_id

protected

Definition at line 514 of file pdu.h.

Oid Pdu::notify_enterprise

protected

Definition at line 507 of file pdu.h.

Oid Pdu::notify_id

protected

Definition at line 506 of file pdu.h.

TimeTicks Pdu::notify_timestamp

protected

Definition at line 505 of file pdu.h.

unsigned short Pdu::pdu_type

protected

Definition at line 502 of file pdu.h.

unsigned long Pdu::request_id

protected

Definition at line 501 of file pdu.h.

int Pdu::security_level

protected

Definition at line 512 of file pdu.h.

GenAddress Pdu::v1_trap_address

protected

Definition at line 508 of file pdu.h.

int Pdu::v1_trap_address_set

protected

Definition at line 509 of file pdu.h.

bool Pdu::validity

protected

Definition at line 500 of file pdu.h.

int Pdu::vb_count

protected

Definition at line 497 of file pdu.h.

Vb** Pdu::vbs

protected

Definition at line 495 of file pdu.h.

int Pdu::vbs_size

protected

Definition at line 496 of file pdu.h.

---

The documentation for this class was generated from the following file:

• pdu.h
