The Object Identifier Class. More...

#include <oid.h>

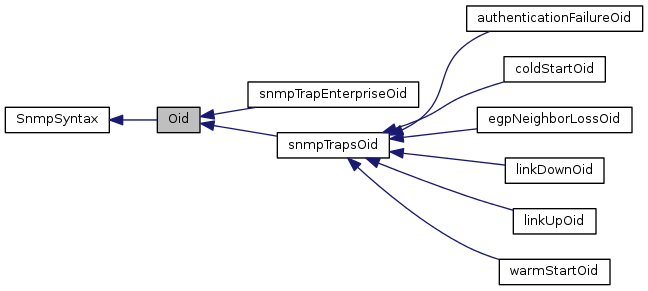

Inheritance diagram for Oid:

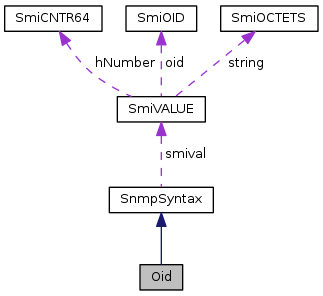

Collaboration diagram for Oid:

Public Member Functions
	Oid ()
	Construct an invalid Oid. More...

	Oid (const char *oid_string, const bool is_dotted_oid_string=true)
	Construct an Oid from a string. More...

	Oid (const Oid &oid)
	Constructor using another oid object (copy constructor). More...

	Oid (const unsigned long *raw_oid, int oid_len)
	Constructor from array. More...

virtual	~Oid ()
	Destructor. More...

SmiUINT32	get_syntax () const
	Return the current syntax. More...

virtual Oid &	operator= (const char *dotted_oid_string)
	Assignment from a string. More...

virtual Oid &	operator= (const Oid &oid)
	Assign one Oid to another. More...

int	get_asn1_length () const
	Return the space needed for serialization. More...

bool	operator== (const Oid &rhs) const
	Overloaded equal operator. More...

bool	operator!= (const Oid &rhs) const
	Overloaded not equal operator. More...

bool	operator< (const Oid &rhs) const
	Overloaded less than < operator. More...

bool	operator<= (const Oid &rhs) const
	Overloaded less than <= operator. More...

bool	operator> (const Oid &rhs) const
	Overloaded greater than > operator. More...

bool	operator>= (const Oid &rhs) const
	Overloaded greater than >= operator. More...

Oid &	operator+= (const char *a)
	Append operator, appends the dotted oid string. More...

Oid &	operator+= (const unsigned long i)
	Appends an int. More...

Oid &	operator+= (const Oid &o)
	Appends an Oid. More...

unsigned long &	operator[] (const unsigned int index)
	Allows element access as an array. More...

unsigned long	operator[] (const unsigned int index) const
	Allows element access as an array for const objects. More...

SmiLPOID	oidval ()
	Get the WinSnmp oid part. More...

void	set_data (const unsigned long *raw_oid, const unsigned int oid_len)
	Set the data from raw form. More...

void	set_data (const char *str, const unsigned int str_len)
	Set the data from raw form. More...

unsigned long	len () const
	Get the length of the oid. More...

void	trim (const unsigned long n=1)
	Trim off the rightmost values of an oid. More...

int	nCompare (const unsigned long n, const Oid &o) const
	Compare two Oids from the left in direction left-to-right. More...

int	nCompare (const Oid &o) const
	Compare two Oids from the left in direction left-to-right. More...

bool	valid () const
	Return validity of the object. More...

const char *	get_printable () const
	Get a printable ASCII string of the whole value. More...

const char *	get_printable (const unsigned long n) const
	Get a printable ASCII string of the right part of the value. More...

const char *	get_printable (const unsigned long start, const unsigned long n, char *&buffer) const
	Get a printable ASCII string of a part of the value. More...

const char *	get_printable (const unsigned long start, const unsigned long n) const
	Get a printable ASCII string of a part of the value. More...

SnmpSyntax *	clone () const
	Clone this object. More...

SnmpSyntax &	operator= (const SnmpSyntax &val)
	Map other SnmpSyntax objects to Oid. More...

void	clear ()
	Clear the Oid. More...

Public Member Functions inherited from SnmpSyntax
virtual	~SnmpSyntax ()
	Virtual destructor to ensure deletion of derived classes... More...

Protected Member Functions
virtual int	StrToOid (const char *string, SmiLPOID dstOid) const
	Convert a string to an smi oid. More...

virtual int	OidCopy (SmiLPOID srcOid, SmiLPOID dstOid) const
	Clone an smi oid. More...

virtual int	OidToStr (const SmiOID srcOid, SmiUINT32 size, char string) const
	Convert an smi oid to its string representation. More...

void	delete_oid_ptr ()
	Free the internal oid pointer and set the pointer and the length to zero. More...

Protected Member Functions inherited from SnmpSyntax
	SnmpSyntax ()

Protected Attributes
SNMP_PP_MUTABLE char *	iv_str

SNMP_PP_MUTABLE char *	iv_part_str

SNMP_PP_MUTABLE bool	m_changed

Protected Attributes inherited from SnmpSyntax
SmiVALUE	smival

Friends
DLLOPT friend Oid	operator+ (const Oid &lhs, const Oid &rhs)
	Overloaded operator +, Concatenate two Oids. More...

Detailed Description

The Object Identifier Class.

The Object Identification (Oid) class is the encapsulation of an SMI object identifier. The SMI object is a data identifier for a data element found in a Management Information Base (MIB), as defined by a MIB definition. The SMI Oid, its related structures and functions, are a natural fit for object orientation. In fact, the Oid class shares many common features to the C++ String class. For those of you familiar with the C++ String class or Microsoft's Foundation Classes (MFC) CString class, the Oid class will be familiar and easy to use. The Oid class is designed to be efficient and fast. The Oid class allows definition and manipulation of object identifiers.

Note: Oid holds two internal buffers for get_printable() functions. The buffer returned by get_printable() is valid until the Oid object is modified. The functions get_printable(len) and get_printable(start, len) share the same buffer which is freed and newly allocated for each call.

Definition at line 94 of file oid.h.

Constructor & Destructor Documentation

Oid::Oid ( )

inline

Construct an invalid Oid.

Definition at line 101 of file oid.h.

References sNMP_SYNTAX_OID.

Oid::Oid	(	const char *	oid_string,
		const bool	is_dotted_oid_string = `true`
	)

Construct an Oid from a string.

Depending on the second param, the oid_string can either be

a dotted oid string (like "1.3.6.1.6"). An arbitrary part of the oid can be given as a string value enclosed in '$' characters. For example the oid string "1.3.6.1.6.1.12.1.3.$public_0$" will result to the oid 1.3.6.1.6.1.12.1.3.112.117.98.108.105.99.95.48
a normal string (like "public"). The Oid will have the ASCII values of the string characters. So "public" will result to the oid 112.117.98.108.105.99

Parameters

oid_string	- for example "1.3.1.6.1.10"
is_dotted_oid_string	- Select format within oid_string

Oid::Oid ( const Oid & oid )

inline

Constructor using another oid object (copy constructor).

Parameters

oid	- Source Oid

Definition at line 134 of file oid.h.

References SmiOID::len, SmiVALUE::oid, SnmpSyntax::smival, sNMP_SYNTAX_OID, and SmiVALUE::value.

Oid::Oid	(	const unsigned long *	raw_oid,
		int	oid_len
	)

inline

Constructor from array.

Parameters

raw_oid	- array of oid values
oid_len	- length of array

Definition at line 159 of file oid.h.

References sNMP_SYNTAX_OID.

virtual Oid::~Oid ( )

inlinevirtual

Destructor.

Definition at line 183 of file oid.h.

Member Function Documentation

void Oid::clear ( )

inlinevirtual

Clear the Oid.

Implements SnmpSyntax.

Definition at line 647 of file oid.h.

SnmpSyntax* Oid::clone ( ) const

inlinevirtual

Clone this object.

Returns: Pointer to the newly created object (allocated through new).

Implements SnmpSyntax.

Definition at line 637 of file oid.h.

void Oid::delete_oid_ptr ( )

inlineprotected

Free the internal oid pointer and set the pointer and the length to zero.

Definition at line 707 of file oid.h.

int Oid::get_asn1_length ( ) const

virtual

Return the space needed for serialization.

Implements SnmpSyntax.

const char* Oid::get_printable ( ) const

inlinevirtual

Get a printable ASCII string of the whole value.

Returns: Dotted oid string (for example "1.3.6.1.6.0")

Implements SnmpSyntax.

Definition at line 590 of file oid.h.

const char* Oid::get_printable ( const unsigned long n ) const

inline

Get a printable ASCII string of the right part of the value.

Parameters

n	- positions to print, counted from right.

Returns: Dotted oid string (for example "6.0")

Definition at line 600 of file oid.h.

const char* Oid::get_printable	(	const unsigned long	start,
		const unsigned long	n,
		char *&	buffer
	)		const

Get a printable ASCII string of a part of the value.

Parameters

start	- First position to print, starting with 1 (not zero!)
n	- positions to print.
buffer	- pointer to the returned buffer

Note: If buffer is not NULL, this function calls "delete [] buffer", a new buffer is allocated using "new" and the caller has to delete it.

Returns: Dotted oid string (for example "3.6.1.6")

const char* Oid::get_printable	(	const unsigned long	start,
		const unsigned long	n
	)		const

inline

Get a printable ASCII string of a part of the value.

Parameters

start	- First position to print, starting with 1 (not zero!)
n	- positions to print.

Returns: Dotted oid string (for example "3.6.1.6")

Definition at line 628 of file oid.h.

SmiUINT32 Oid::get_syntax ( ) const

inlinevirtual

Return the current syntax.

Returns: always sNMP_SYNTAX_OID

Implements SnmpSyntax.

Definition at line 195 of file oid.h.

References sNMP_SYNTAX_OID.

unsigned long Oid::len ( ) const

inline

Get the length of the oid.

Definition at line 463 of file oid.h.

Referenced by Pdu::get_notify_enterprise(), operator<(), operator==(), and Pdu::set_notify_enterprise().

int Oid::nCompare	(	const unsigned long	n,
		const Oid &	o
	)		const

inline

Compare two Oids from the left in direction left-to-right.

Parameters

n	- Subvalues to compare
o	- The Oid to compare with

Returns: 0 if equal / -1 if less / 1 if greater

Definition at line 490 of file oid.h.

References SmiOID::len, SmiVALUE::oid, SmiOID::ptr, SnmpSyntax::smival, and SmiVALUE::value.

int Oid::nCompare ( const Oid & o ) const

inline

Compare two Oids from the left in direction left-to-right.

Parameters

n	- Subvalues to compare
o	- The Oid to compare with

Returns: 0 if equal / -1 if less / 1 if greater

Definition at line 540 of file oid.h.

References SmiOID::len, SmiVALUE::oid, SmiOID::ptr, SnmpSyntax::smival, and SmiVALUE::value.

virtual int Oid::OidCopy	(	SmiLPOID	srcOid,
		SmiLPOID	dstOid
	)		const

inlineprotectedvirtual

Clone an smi oid.

Parameters

srcOid	- source oid
dstOid	- destination oid

Definition at line 664 of file oid.h.

References SmiOID::len, MEMCPY, and SmiOID::ptr.

virtual int Oid::OidToStr	(	const SmiOID *	srcOid,
		SmiUINT32	size,
		char *	string
	)		const

protectedvirtual

Convert an smi oid to its string representation.

Parameters

srcOid	- source oid
size	- size of string
string	- pointer to string

SmiLPOID Oid::oidval ( )

inline

Get the WinSnmp oid part.

Note: This method returns a pointer to internal data. If it is modified, the Oid changes too.

Returns: pointer to the internal oid structure.

Definition at line 442 of file oid.h.

bool Oid::operator!= ( const Oid & rhs ) const

inline

Overloaded not equal operator.

Definition at line 243 of file oid.h.

Oid& Oid::operator+= ( const char * a )

Append operator, appends the dotted oid string.

Parameters

a	- dotted oid string, for example "5.192.14.6"

Oid& Oid::operator+= ( const unsigned long i )

inline

Appends an int.

Parameters

i	- Value to add at the end of the Oid

Definition at line 363 of file oid.h.

Oid& Oid::operator+= ( const Oid & o )

inline

Appends an Oid.

Parameters

o	- Oid to add at the end

Definition at line 375 of file oid.h.

References SmiOID::len, MEMCPY, SmiVALUE::oid, SmiOID::ptr, SnmpSyntax::smival, and SmiVALUE::value.

bool Oid::operator< ( const Oid & rhs ) const

inline

Overloaded less than < operator.

Definition at line 249 of file oid.h.

References len().

bool Oid::operator<= ( const Oid & rhs ) const

inline

Overloaded less than <= operator.

Definition at line 264 of file oid.h.

virtual Oid& Oid::operator= ( const char * dotted_oid_string )

virtual

Assignment from a string.

Parameters

dotted_oid_string - New value (for example "1.3.6.1.6.0");

virtual Oid& Oid::operator= ( const Oid & oid )

inlinevirtual

Assign one Oid to another.

Definition at line 207 of file oid.h.

References SmiOID::len, SmiVALUE::oid, SnmpSyntax::smival, and SmiVALUE::value.

SnmpSyntax& Oid::operator= ( const SnmpSyntax & val )

virtual

Map other SnmpSyntax objects to Oid.

Implements SnmpSyntax.

bool Oid::operator== ( const Oid & rhs ) const

inline

Overloaded equal operator.

Definition at line 232 of file oid.h.

References len().

bool Oid::operator> ( const Oid & rhs ) const

inline

Overloaded greater than > operator.

Definition at line 270 of file oid.h.

bool Oid::operator>= ( const Oid & rhs ) const

inline

Overloaded greater than >= operator.

Definition at line 276 of file oid.h.

unsigned long& Oid::operator[] ( const unsigned int index )

inline

Allows element access as an array.

This method behaves like real array: if your index is out of bounds, you're lost!

Parameters

index - valid index – 0 to (len() - 1)

Returns: Value on the given index

Definition at line 420 of file oid.h.

unsigned long Oid::operator[] ( const unsigned int index ) const

inline

Allows element access as an array for const objects.

This method behaves like real array: if your index is out of bounds, you're lost!

Parameters

index - valid index – 0 to (len() - 1)

Returns: Value on the given position

Definition at line 432 of file oid.h.

void Oid::set_data	(	const unsigned long *	raw_oid,
		const unsigned int	oid_len
	)

Set the data from raw form.

Parameters

raw_oid	- Array of new values
oid_len	- Length of the array raw_oid

void Oid::set_data	(	const char *	str,
		const unsigned int	str_len
	)

Set the data from raw form.

Parameters

str	- Array of new values (a string)
str_len	- Length of the array raw_oid

virtual int Oid::StrToOid	(	const char *	string,
		SmiLPOID	dstOid
	)		const

protectedvirtual

Convert a string to an smi oid.

Parameters

string	- input string
dstOid	- destination oid

void Oid::trim ( const unsigned long n = 1 )

inline

Trim off the rightmost values of an oid.

Parameters

n	- Trim off n values from the right (default is one)

Definition at line 470 of file oid.h.

bool Oid::valid ( ) const

inlinevirtual

Return validity of the object.

Implements SnmpSyntax.

Definition at line 583 of file oid.h.

Friends And Related Function Documentation

DLLOPT friend Oid operator+	(	const Oid &	lhs,
		const Oid &	rhs
	)

friend

Overloaded operator +, Concatenate two Oids.

Definition at line 348 of file oid.h.

Member Data Documentation

SNMP_PP_MUTABLE char* Oid::iv_part_str

protected

Definition at line 698 of file oid.h.

SNMP_PP_MUTABLE char* Oid::iv_str

protected

Definition at line 697 of file oid.h.

SNMP_PP_MUTABLE bool Oid::m_changed

protected

Definition at line 699 of file oid.h.

The documentation for this class was generated from the following file:

oid.h

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
