User based Target. More...

#include <target.h>

Inheritance diagram for UTarget:

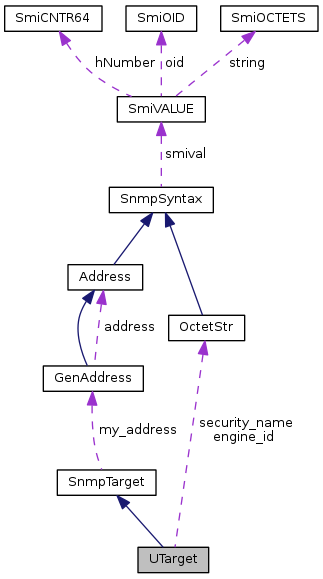

Collaboration diagram for UTarget:

Public Member Functions
	UTarget ()
	Constructor with no args. More...

	UTarget (const Address &address, const char *sec_name, const int sec_model)
	Constructor with all args. More...

	UTarget (const Address &address, const OctetStr &sec_name, const int sec_model)
	Constructor with all args. More...

	UTarget (const Address &address)
	Constructor with only address. More...

	UTarget (const UTarget &target)
	Constructor from existing UTarget. More...

	~UTarget ()
	Destructor, that has nothing to do. More...

SnmpTarget *	clone () const
	Clone operator. More...

bool	set_address (const Address &address)
	Set the address object. More...

const OctetStr &	get_security_name () const
	Get the security name. More...

void	get_security_name (OctetStr &oct) const
	Get the security name. More...

void	set_security_name (const char *str)
	Set the security name. More...

void	set_security_name (const OctetStr &oct)
	Set the security name. More...

void	set_engine_id (const char *str)
	Set the engine id. More...

void	set_engine_id (const OctetStr &oct)
	Set the engine id. More...

const OctetStr &	get_engine_id () const
	Get the engine id. More...

void	get_engine_id (OctetStr &oct) const
	Get the engine id. More...

int	get_security_model () const
	Get the security_model. More...

void	set_security_model (int sec_model)
	Set the security_model. More...

UTarget &	operator= (const UTarget &target)
	Overloaded assignment operator. More...

virtual int	operator== (const UTarget &rhs) const
	Overloeaded compare operator. More...

bool	resolve_to_U (OctetStr &sec_name, int &sec_model, GenAddress &address, unsigned long &t, int &r, unsigned char &v) const
	Get all values of a UTarget object. More...

void	clear ()
	Reset the object. More...

Public Member Functions inherited from SnmpTarget
	SnmpTarget ()
	Create a SnmpTarget object with default values. More...

	SnmpTarget (const Address &address)
	Create a SnmpTarget object with the given Address. More...

virtual	~SnmpTarget ()
	Destructor that has nothing to do. More...

target_type	get_type () const
	Return the type of the target object. More...

bool	valid () const
	Returns the validity of the target object. More...

void	set_retry (const int r)
	Set the retry value. More...

int	get_retry () const
	Get the retry value. More...

void	set_timeout (const unsigned long t)
	Set the timeout for requests. More...

unsigned long	get_timeout () const
	Get the timeout. More...

bool	get_address (GenAddress &address) const
	Get the address object. More...

const GenAddress &	get_address () const
	Get the address object. More...

snmp_version	get_version () const
	Get the SNMP version for this target. More...

void	set_version (const snmp_version v)
	Set the SNMP version of this target. More...

int	operator== (const SnmpTarget &rhs) const
	Overloeaded compare operator. More...

Protected Attributes
OctetStr	security_name

int	security_model

OctetStr	engine_id

Protected Attributes inherited from SnmpTarget
bool	validity
	Validity of the object. More...

unsigned long	timeout
	xmit timeout in 10 milli secs More...

int	retries
	number of retries More...

snmp_version	version
	SNMP version to use. More...

target_type	ttype
	Type of the target. More...

GenAddress	my_address
	Address object. More...

Additional Inherited Members
Public Types inherited from SnmpTarget
enum	target_type { type_base, type_ctarget, type_utarget }
	Enum to identify a target object through SnmpTarget::get_type() method. More...

Static Public Member Functions inherited from SnmpTarget
static void	set_default_timeout (const unsigned long t)
	Change the default timeout. More...

static void	set_default_retries (const int r)
	Change the default retries vlaue. More...

Static Protected Attributes inherited from SnmpTarget
static unsigned long	default_timeout
	default timeout for new objects More...

static int	default_retries
	default retries for new objects More...

Detailed Description

User based Target.

This class is used for SNMPv3 targets.

Definition at line 459 of file target.h.

Constructor & Destructor Documentation

UTarget::UTarget ( )

Constructor with no args.

The validity of the target will be false.

UTarget::UTarget	(	const Address &	address,
		const char *	sec_name,
		const int	sec_model
	)

Constructor with all args.

Parameters

address	- Address of the target host (cann be any address object)
sec_name	- The security name
sec_model	- The security model to use

UTarget::UTarget	(	const Address &	address,
		const OctetStr &	sec_name,
		const int	sec_model
	)

Constructor with all args.

Parameters

address	- Address of the target host (cann be any address object)
sec_name	- The security name
sec_model	- The security model to use

UTarget::UTarget ( const Address & address )

Constructor with only address.

Assumes the following defaults: security_name: initial, version: SNMPv3, security_model: v3MP.

Parameters

address - Address of the target host (cann be any address object)

UTarget::UTarget ( const UTarget & target )

Constructor from existing UTarget.

UTarget::~UTarget ( )

inline

Destructor, that has nothing to do.

Definition at line 508 of file target.h.

Member Function Documentation

void UTarget::clear ( )

virtual

Reset the object.

Reimplemented from SnmpTarget.

SnmpTarget* UTarget::clone ( ) const

inlinevirtual

Clone operator.

Clone operation for creating a new UTarget from an existing UTarget.

Note: The caller MUST use the delete operation on the return value when done.

Returns: A pointer to the new object on success, 0 on failure.

Reimplemented from SnmpTarget.

Definition at line 521 of file target.h.

const OctetStr& UTarget::get_engine_id ( ) const

inline

Get the engine id.

Returns: A const reference to the enigne id of this target.

Definition at line 591 of file target.h.

void UTarget::get_engine_id ( OctetStr & oct ) const

inline

Get the engine id.

Parameters

oct	- OctetStr that will be filled with the engine id

Definition at line 598 of file target.h.

int UTarget::get_security_model ( ) const

inline

Get the security_model.

Returns: An integer representing the security_model of this target.

Definition at line 606 of file target.h.

const OctetStr& UTarget::get_security_name ( ) const

inline

Get the security name.

Returns: A const reference to the security name.

Definition at line 538 of file target.h.

void UTarget::get_security_name ( OctetStr & oct ) const

inline

Get the security name.

Parameters

oct	- OctetStr that will be filled with the security name.

Definition at line 545 of file target.h.

UTarget& UTarget::operator= ( const UTarget & target )

Overloaded assignment operator.

virtual int UTarget::operator== ( const UTarget & rhs ) const

virtual

Overloeaded compare operator.

Two UTarget objects are considered equal, if all member variables (beside the engine id) and the base classes are equal.

Returns: 1 if targets are equal, 0 if not.

bool UTarget::resolve_to_U	(	OctetStr &	sec_name,
		int &	sec_model,
		GenAddress &	address,
		unsigned long &	t,
		int &	r,
		unsigned char &	v
	)		const

Get all values of a UTarget object.

Parameters

sec_name	- security name
sec_model	- security model
address	- Address of the target
t	- Timeout value
r	- Retries value
v	- The SNMP version of this target

Returns: TRUE on success and FALSE on failure.

bool UTarget::set_address ( const Address & address )

virtual

Set the address object.

This method is the same as in SnmpTarget, but it deletes engine_id.

Parameters

address - The address that this target should use.

Returns: true on success.

Reimplemented from SnmpTarget.

void UTarget::set_engine_id ( const char * str )

inline

Set the engine id.

In most cases it is not necessary for the user to set the engine id as snmp++ performs engine id discovery. If the engine id is set by the user, no engine_id discovery is made, even if the engine id set by the user is wrong.

Parameters

str	- The engine id to use

Definition at line 572 of file target.h.

void UTarget::set_engine_id ( const OctetStr & oct )

inline

Set the engine id.

In most cases it is not necessary for the user to set the engine id as snmp++ performs engine id discovery. If the engine id is set by the user, no engine_id discovery is made, even if the engine id set by the user is wrong.

Parameters

oct	- The engine id to use

Definition at line 584 of file target.h.

void UTarget::set_security_model ( int sec_model )

inline

Set the security_model.

Parameters

sec_model - The security model to use.

Definition at line 613 of file target.h.

void UTarget::set_security_name ( const char * str )

inline

Set the security name.

Parameters

str	- The new security name

Definition at line 552 of file target.h.

void UTarget::set_security_name ( const OctetStr & oct )

inline

Set the security name.

Parameters

oct	- The new security name

Definition at line 559 of file target.h.

Member Data Documentation

OctetStr UTarget::engine_id

protected

Definition at line 658 of file target.h.

int UTarget::security_model

protected

Definition at line 656 of file target.h.

OctetStr UTarget::security_name

protected

Definition at line 655 of file target.h.

The documentation for this class was generated from the following file:

target.h
