The Vb class is the encapsulation of the SNMP variable binding. More...

#include <vb.h>

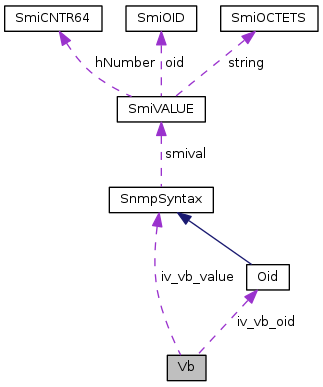

Collaboration diagram for Vb:

Public Member Functions
	Vb ()
	Constructor with no arguments. More...

	Vb (const Oid &oid)
	Constructor to initialize the oid. More...

	Vb (const Vb &vb)
	Copy constructor. More...

	~Vb ()
	Destructor that frees all allocated memory. More...

Vb &	operator= (const Vb &vb)
	Overloaded assignment operator. More...

Vb *	clone () const
	Clone operator. More...

void	set_oid (const Oid &oid)
	Set the oid from another oid. More...

void	get_oid (Oid &oid) const
	Get the oid portion. More...

const Oid &	get_oid () const
	Get the oid portion as a const. More...

void	set_value (const SnmpSyntax &val)
	Set the value using any SnmpSyntax object. More...

void	set_value (const int i)
	Set the value with an int. More...

void	set_value (const unsigned int i)
	Set the value with an unsigned int. More...

void	set_value (const long i)
	Set the value with a long int. More...

void	set_value (const unsigned long i)
	Set the value with an unsigned long int. More...

void	set_value (const char *ptr)
	Set value using a null terminated string. More...

void	set_value (const unsigned char *ptr, const unsigned int len)
	Set value using a string and length. More...

void	set_null ()
	Set the value portion of the vb to null, if its not already. More...

int	get_value (SnmpSyntax &val) const
	Get the value using a SnmpSyntax object. More...

int	get_value (int &i) const
	Get the value. More...

int	get_value (unsigned int &i) const
	Get the value. More...

int	get_value (long &i) const
	Get the value. More...

int	get_value (unsigned long &i) const
	Get the value. More...

int	get_value (pp_uint64 &i) const
	Get the value. More...

int	get_value (unsigned char *ptr, unsigned long &len) const
	Get the value. More...

int	get_value (unsigned char *ptr, unsigned long &len, const unsigned long maxlen, const bool add_null_byte=false) const
	Get the value. More...

int	get_value (char *ptr) const
	Get the value. More...

SnmpSyntax *	clone_value () const
	Clone the value portion of the variable binding. More...

SmiUINT32	get_syntax () const
	Return the syntax or the exception status. More...

void	set_syntax (const SmiUINT32 syntax)
	Set the syntax. More...

void	set_exception_status (const SmiUINT32 status)
	Set the exception status. More...

SmiUINT32	get_exception_status () const
	Get the exception status. More...

const char *	get_printable_value () const
	Return a formatted version of the value. More...

const char *	get_printable_oid () const
	Return a formatted version of the Oid. More...

bool	valid () const
	Return the validity of a Vb object. More...

int	get_asn1_length () const
	Return the space needed for serialization. More...

void	clear ()
	Reset the object. More...

Protected Member Functions
void	free_vb ()
	Free the value portion. More...

Protected Attributes
Oid	iv_vb_oid

SnmpSyntax *	iv_vb_value

SmiUINT32	exception_status

Detailed Description

The Vb class is the encapsulation of the SNMP variable binding.

Variable binding lists in SNMP++ are represented as arrays of Vb objects. Vb objects are passed to and from SNMP objects to provide getting or setting MIB values. The vb class keeps its own memory for objects and does not utilize pointers to external data structures.

Definition at line 88 of file vb.h.

Constructor & Destructor Documentation

Vb::Vb ( )

inline

Constructor with no arguments.

This constructor creates an unitialized vb.

Definition at line 100 of file vb.h.

Vb::Vb ( const Oid & oid )

inline

Constructor to initialize the oid.

This constructor creates a vb with oid portion initialized.

Definition at line 107 of file vb.h.

Vb::Vb ( const Vb & vb )

inline

Copy constructor.

Definition at line 113 of file vb.h.

Vb::~Vb ( )

inline

Destructor that frees all allocated memory.

Definition at line 118 of file vb.h.

Member Function Documentation

void Vb::clear ( )

inline

Reset the object.

Definition at line 423 of file vb.h.

Vb* Vb::clone ( ) const

inline

Clone operator.

Definition at line 128 of file vb.h.

SnmpSyntax* Vb::clone_value ( ) const

inline

Clone the value portion of the variable binding.

The returned pointer must be deleted by the caller.

Returns: a pointer to a clone of the value of the receiver.

Definition at line 354 of file vb.h.

void Vb::free_vb ( )

protected

Free the value portion.

int Vb::get_asn1_length ( ) const

Return the space needed for serialization.

Returns: the length of the BER encoding of this Vb.

SmiUINT32 Vb::get_exception_status ( ) const

inline

Get the exception status.

Definition at line 389 of file vb.h.

void Vb::get_oid ( Oid & oid ) const

inline

Get the oid portion.

Note: Check the validity of the object through Vb::valid() before calling this method.

Definition at line 143 of file vb.h.

const Oid& Vb::get_oid ( ) const

inline

Get the oid portion as a const.

Note: Check the validity of the object through Vb::valid() before calling this method.

Definition at line 151 of file vb.h.

const char* Vb::get_printable_oid ( ) const

inline

Return a formatted version of the Oid.

Returns: A null terminated string (may be empty if no Oid has been set).

Definition at line 403 of file vb.h.

const char* Vb::get_printable_value ( ) const

Return a formatted version of the value.

Returns: A null terminated string (empty if no value).

SmiUINT32 Vb::get_syntax ( ) const

Return the syntax or the exception status.

Returns: If the SNMPv2 exception status is set, it is returned. otherwise the syntax of the value object is returned.

int Vb::get_value ( SnmpSyntax & val ) const

Get the value using a SnmpSyntax object.

Parameters

val	- An object of a subclass of SnmpSyntax that will be assigned the value of the vb.

Returns: SNMP_CLASS_SUCCESS if the vb value could be assigned to the passed SnmpSyntax object, else SNMP_CLASS_INVALID.

int Vb::get_value ( int & i ) const

Get the value.

This method will only return success if the value of the vb is SMI INT32.

Parameters

i	- returned value

Returns: SNMP_CLASS_SUCCESS on success, else SNMP_CLASS_INVALID.

int Vb::get_value ( unsigned int & i ) const

Get the value.

This method will only return success if the value of the vb can be mapped to an unsigned long (SMI types uint32, counter32, gauge and timeticks).

Parameters

i	- returned value

Returns: SNMP_CLASS_SUCCESS on success, else SNMP_CLASS_INVALID.

int Vb::get_value ( long & i ) const

Get the value.

This method will only return success if the value of the vb is SMI INT32.

Parameters

i	- returned value

Returns: SNMP_CLASS_SUCCESS on success, else SNMP_CLASS_INVALID.

int Vb::get_value ( unsigned long & i ) const

Get the value.

This method will only return success if the value of the vb can be mapped to an unsigned long (SMI types uint32, counter32, gauge and timeticks).

Parameters

i	- returned value

Returns: SNMP_CLASS_SUCCESS on success, else SNMP_CLASS_INVALID.

int Vb::get_value ( pp_uint64 & i ) const

Get the value.

This method will only return success if the value of the vb can be mapped to an unsigned 64bit value (SMI type counter64).

Parameters

i	- returned value

Returns: SNMP_CLASS_SUCCESS on success, else SNMP_CLASS_INVALID.

int Vb::get_value	(	unsigned char *	ptr,
		unsigned long &	len
	)		const

Get the value.

This method will only return success if the value of the vb is SMI OCTET.

Note: The caller must provide a target string big enough to handle the vb string. No length checks are done within this method. The returned string will be null terminated.

Parameters

ptr	- Pointer to already allocated space to hold the vb value. The first char will be set to zero on failure.
len	- Returned length of the string. Will be set to 0 on failure.

Returns: SNMP_CLASS_SUCCESS on success, else SNMP_CLASS_INVALID.

int Vb::get_value	(	unsigned char *	ptr,
		unsigned long &	len,
		const unsigned long	maxlen,
		const bool	add_null_byte = `false`
	)		const

Get the value.

This method will only return success if the value of the vb is SMI OCTET.

Note: If the target space is not big enough to hold the complete string only part of the string is copied.

Parameters

ptr	- Pointer to already allocated space to hold the vb value. The first char will be set to zero on failure.
len	- Returned length of the string. Will be set to 0 on failure.
maxlen	- Maximum length of the space that ptr points to.
add_null_byte	- Add a null byte at end of output string.

Returns: SNMP_CLASS_SUCCESS on success, else SNMP_CLASS_INVALID.

int Vb::get_value ( char * ptr ) const

Get the value.

This method will only return success if the value of the vb is SMI OCTET.

Note: The caller must provide a target string big enough to handle the vb string. No length checks are done within this method. The returned string will be null terminated.

Parameters

ptr	- Pointer to already allocated space to hold the vb value. The first char will be set to zero on failure.

Returns: SNMP_CLASS_SUCCESS on success, else SNMP_CLASS_INVALID.

Vb& Vb::operator= ( const Vb & vb )

Overloaded assignment operator.

void Vb::set_exception_status ( const SmiUINT32 status )

inline

Set the exception status.

Parameters

status - the new SNMPv2 exception status.

Definition at line 383 of file vb.h.

void Vb::set_null ( )

inline

Set the value portion of the vb to null, if its not already.

Definition at line 215 of file vb.h.

void Vb::set_oid ( const Oid & oid )

inline

Set the oid from another oid.

Definition at line 135 of file vb.h.

void Vb::set_syntax ( const SmiUINT32 syntax )

Set the syntax.

The Value portion of the Vb will be deleted and a new value portion is allocated with it's default value (zero).

Parameters

syntax - The new syntax.

void Vb::set_value ( const SnmpSyntax & val )

inline

Set the value using any SnmpSyntax object.

Definition at line 158 of file vb.h.

References SnmpSyntax::clone().

void Vb::set_value ( const int i )

inline

Set the value with an int.

The syntax of the Vb will be set to SMI INT32.

Definition at line 166 of file vb.h.

void Vb::set_value ( const unsigned int i )

inline

Set the value with an unsigned int.

The syntax of the Vb will be set to SMI UINT32.

Definition at line 173 of file vb.h.

void Vb::set_value ( const long i )

inline

Set the value with a long int.

Note: Even on 64 bit platforms, only 32 bits are used

The syntax of the Vb will be set to SMI INT32.

Definition at line 183 of file vb.h.

void Vb::set_value ( const unsigned long i )

inline

Set the value with an unsigned long int.

Note: Even on 64 bit platforms, only 32 bits are used

The syntax of the Vb will be set to SMI UINT32.

Definition at line 193 of file vb.h.

void Vb::set_value ( const char * ptr )

inline

Set value using a null terminated string.

The syntax of the Vb will be set to SMI octet.

Definition at line 201 of file vb.h.

void Vb::set_value	(	const unsigned char *	ptr,
		const unsigned int	len
	)

inline

Set value using a string and length.

The syntax of the Vb will be set to SMI octet.

Definition at line 209 of file vb.h.

bool Vb::valid ( ) const

Return the validity of a Vb object.

Returns: TRUE if oid and value have been set.

Member Data Documentation

SmiUINT32 Vb::exception_status

protected

Definition at line 429 of file vb.h.

Oid Vb::iv_vb_oid

protected

Definition at line 423 of file vb.h.

SnmpSyntax* Vb::iv_vb_value

protected

Definition at line 428 of file vb.h.

The documentation for this class was generated from the following file:

vb.h
