SNMP class defintion. More...

#include <uxsnmp.h>

Inheritance diagram for Snmp:

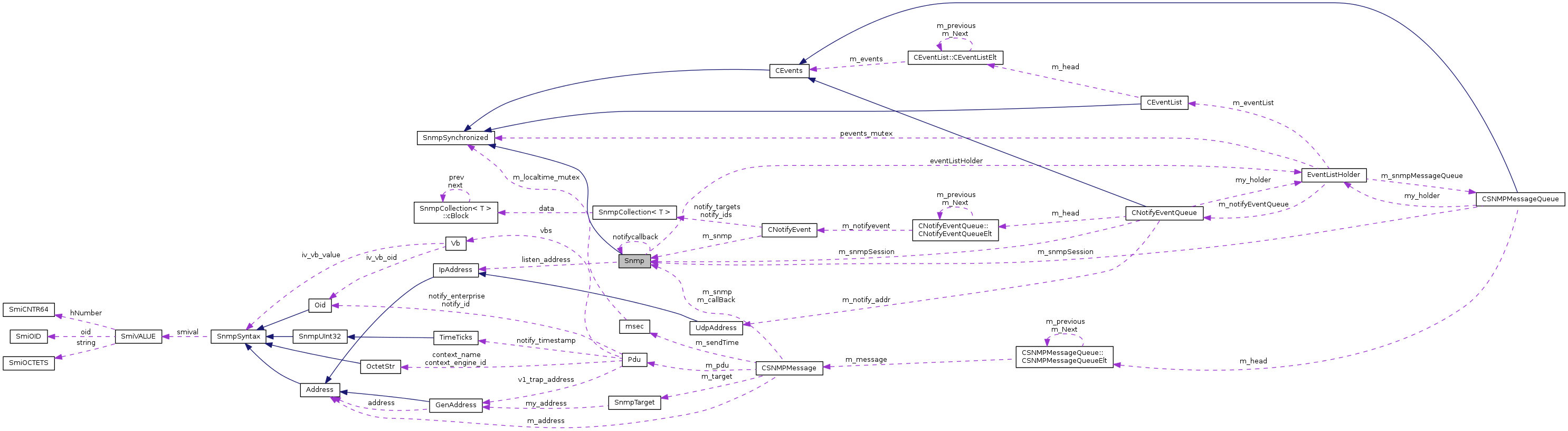

Collaboration diagram for Snmp:

Classes
struct	V3CallBackData
	Internal used callback data structure for async v3 requests. More...

Public Member Functions
virtual int	cancel (const unsigned long rid)
	Cancel a pending request. More...

virtual int	send_raw_data (unsigned char *send_buf, size_t send_len, UdpAddress &address, SnmpSocket fd=INVALID_SOCKET)
	Send raw UDP data. More...

const IpAddress &	get_listen_address () const

bool	start_poll_thread (const int timeout)
	Start one thread listening for responses and notifications. More...

void	stop_poll_thread ()
	Stop the thread listening for responses and notifications. More...

EventListHolder *	get_eventListHolder ()

Constructors and Destructor
	Snmp (int &status, const unsigned short port=0, const bool bind_ipv6=false)
	Construct a new SNMP session using the given UDP port. More...

	Snmp (int &status, const UdpAddress &addr)
	Construct a new SNMP session using the given UDP address. More...

	Snmp (int &status, const UdpAddress &addr_v4, const UdpAddress &addr_v6)
	Construct a new SNMP session using the given UDP addresses. More...

virtual	~Snmp ()
	Destructor. More...

Sending SNMP Pdus
virtual int	get (Pdu &pdu, const SnmpTarget &target)
	Send a blocking SNMP-GET request. More...

virtual int	get (Pdu &pdu, const SnmpTarget &target, const snmp_callback callback, const void *callback_data=0)
	Send a async SNMP-GET request. More...

virtual int	get_next (Pdu &pdu, const SnmpTarget &target)
	Send a blocking SNMP-GETNEXT request. More...

virtual int	get_next (Pdu &pdu, const SnmpTarget &target, const snmp_callback callback, const void *callback_data=0)
	Send a async SNMP-GETNEXT request. More...

virtual int	set (Pdu &pdu, const SnmpTarget &target)
	Send a blocking SNMP-SET request. More...

virtual int	set (Pdu &pdu, const SnmpTarget &target, const snmp_callback callback, const void *callback_data=0)
	Send a async SNMP-SET request. More...

virtual int	get_bulk (Pdu &pdu, const SnmpTarget &target, const int non_repeaters, const int max_reps)
	Send a blocking SNMP-GETBULK request. More...

virtual int	get_bulk (Pdu &pdu, const SnmpTarget &target, const int non_repeaters, const int max_reps, const snmp_callback callback, const void *callback_data=0)
	Send a async SNMP-GETBULK request. More...

virtual int	trap (Pdu &pdu, const SnmpTarget &target)
	Send a SNMP-TRAP. More...

virtual int	report (Pdu &pdu, const SnmpTarget &target)
	Send a SNMPv3-REPORT. More...

virtual int	inform (Pdu &pdu, const SnmpTarget &target)
	Send a blocking INFORM-REQ. More...

virtual int	inform (Pdu &pdu, const SnmpTarget &target, const snmp_callback callback, const void *callback_data=0)
	Send a async INFORM-REQ. More...

virtual int	response (Pdu &pdu, const SnmpTarget &target, const SnmpSocket fd=INVALID_SOCKET)
	Send a RESPONSE. More...

virtual int	broadcast_discovery (UdpAddressCollection &addresses, const int timeout_sec, const UdpAddress &addr, const snmp_version version, const OctetStr *community=0)
	Send a SNMP Broadcast message. More...

virtual int	engine_id_discovery (OctetStr &engine_id, const int timeout_sec, const UdpAddress &addr)

Trap and Inform handling
virtual void	notify_set_listen_port (const int port)
	Set the port for listening to traps and informs. More...

virtual int	notify_get_listen_port ()
	Get the port that is used for listening to traps and informs. More...

virtual int	notify_register (const OidCollection &trapids, const TargetCollection &targets, const snmp_callback callback, const void *callback_data=0)
	Register to get traps and informs. More...

virtual int	notify_unregister ()
	Unregister to get traps and informs. More...

virtual int	get_notify_filter (OidCollection &trapids, TargetCollection &targets)
	Get notify register info. More...

snmp_callback	get_notify_callback ()
	Get a pointer to the callback function used for trap reception. More...

void *	get_notify_callback_data ()
	Get a pointer to the data that is passed to the callback function. More...

Public Member Functions inherited from SnmpSynchronized
	SnmpSynchronized ()

virtual	~SnmpSynchronized ()

void	lock ()

void	unlock ()

Static Public Member Functions
static const char *	get_version ()
	Get the version of the snmp++ library. More...

static const char *	error_msg (const int c)
	Returns a human readable error string. More...

static int	error_code (const Oid &v3Oid)
	Returns the error code for a SNMPv3 report Oid. More...

static const char *	error_msg (const Oid &v3Oid)
	Returns a human readable error string. More...

static void	socket_startup ()
	Initialize the Winsock library (WSAStartup). More...

static void	socket_cleanup ()
	Shut down the Winsock library (WSACleanup). More...

Protected Member Functions
bool	is_running (void) const
	Check for the status of the worker thread. More...

long	MyMakeReqId ()
	Generate a unique (for this Snmp obect) request id. More...

void	init (int &status, IpAddress *[2], const unsigned short port_v4, const unsigned short port_v6)
	Common init function used by constructors. More...

void	check_notify_timestamp (Pdu &pdu)
	Set the notify timestamp of a trap pdu if the user did not set it. More...

int	snmp_engine (Pdu &pdu, long int non_reps, long int max_reps, const SnmpTarget &target, const snmp_callback cb, const void *cbd, SnmpSocket fd=INVALID_SOCKET, int reports_received=0)
	gets, sets and get nexts go through here.... More...

void	map_action (unsigned short action, unsigned short &pdu_action)

Static Protected Member Functions
static void *	process_thread (void *arg)
	This is a working thread for the recovery of the pending events. More...

Protected Attributes
SnmpSocket	iv_snmp_session

IpAddress	listen_address

long	current_rid

snmp_callback	notifycallback

void *	notifycallback_data

EventListHolder *	eventListHolder

Private Attributes
bool	m_bThreadRunning

int	m_iPollTimeOut

pthread_t	m_hThread

Friends
void	v3CallBack (int reason, Snmp snmp, Pdu &pdu, SnmpTarget &target, void v3cd)

void	deleteV3Callback (struct Snmp::V3CallBackData *&cbData)

Additional Inherited Members
Public Attributes inherited from SnmpSynchronized
pthread_mutex_t	_mutex

Detailed Description

SNMP class defintion.

The Snmp class provides an object oriented approach to SNMP. The SNMP class is an encapsulation of SNMP sessions, gets, sets and get nexts. The class manages all SNMP resources and provides complete retry and timeout capability.

This class is thread save.

Note: If you use the async methods to send requests you MUST call Snmp::eventListHolder->SNMPProcessPendingEvents() while waiting for the responses. This function triggers the resend of packets and calls your callback function if the response is received.; Call srand() before creating the first Snmp object.

Definition at line 99 of file uxsnmp.h.

Constructor & Destructor Documentation

Snmp::Snmp	(	int &	status,
		const unsigned short	port = `0`,
		const bool	bind_ipv6 = `false`
	)

Construct a new SNMP session using the given UDP port.

Parameters

status	after creation of the session this parameter will hold the creation status.
port	an UDP port to be used for the session
bind_ipv6	Set this to true if IPv6 should be used. The default is IPv4.

Snmp::Snmp	(	int &	status,
		const UdpAddress &	addr
	)

Construct a new SNMP session using the given UDP address.

Thus, binds the session on a specific IPv4 or IPv6 address.

Parameters

status	after creation of the session this parameter will hold the creation status.
addr	an UDP address to be used for the session

Snmp::Snmp	(	int &	status,
		const UdpAddress &	addr_v4,
		const UdpAddress &	addr_v6
	)

Construct a new SNMP session using the given UDP addresses.

Using this constructor will bind to both IPv4 and IPv6 ports.

Parameters

status	after creation of the session this parameter will hold the creation status.
addr_v4	an IPv4 UDP address to be used for the session
addr_v6	an IPv6 UDP address to be used for the session

virtual Snmp::~Snmp ( )

virtual

Destructor.

Member Function Documentation

virtual int Snmp::broadcast_discovery	(	UdpAddressCollection &	addresses,
		const int	timeout_sec,
		const UdpAddress &	addr,
		const snmp_version	version,
		const OctetStr *	community = `0`
	)

virtual

Send a SNMP Broadcast message.

This member function sends out a valid SNMP message to a broadcast address and waits for responses. The source addresses of the response messages are added to the collection.

The message is sent only once.

Note: SNMP_BROADCAST has to be defined in config_snmp_pp.h.; There is no SNMP standard that defines "SNMP Broadcast discovery". SNMP agents are not forced to answer requests that are sent to a broadcast address.; Do not use this method while waiting for other responses, as these responses will be added to the collection and dropped by this method. Solution for this problem: Use a special Snmp object only for broadcasts.

Parameters

addresses	- The addresses of the agents, that answered.
timeout_sec	- Timeout in seconds
addr	- Broadcast address
version	- SNMP version to use
community	- Only needed for SNMPv1/v2c, defaults to "public"

virtual int Snmp::cancel ( const unsigned long rid )

virtual

Cancel a pending request.

Parameters

rid	- The request id to cancel

Returns: SNMP_CLASS_SUCCES or SNMP_CLASS_INVALID_REQID on failure

void Snmp::check_notify_timestamp ( Pdu & pdu )

protected

Set the notify timestamp of a trap pdu if the user did not set it.

virtual int Snmp::engine_id_discovery	(	OctetStr &	engine_id,
		const int	timeout_sec,
		const UdpAddress &	addr
	)

virtual

static int Snmp::error_code ( const Oid & v3Oid )

static

Returns the error code for a SNMPv3 report Oid.

If a report message is returned, then the contained Oid can be used to get a error code.

Parameters

v3Oid - Oid of a SNMPv3 report Pdu

Returns: Error code.

static const char* Snmp::error_msg ( const int c )

static

Returns a human readable error string.

Parameters

c	- Error code returned by any method of this class

Returns: Null terminated error string.

static const char* Snmp::error_msg ( const Oid & v3Oid )

inlinestatic

Returns a human readable error string.

If a report message is returned, then the contained Oid can be used to get a error string.

Parameters

v3Oid - Oid of a SNMPv3 report Pdu

Returns: Null terminated error string.

Definition at line 192 of file uxsnmp.h.

virtual int Snmp::get	(	Pdu &	pdu,
		const SnmpTarget &	target
	)

virtual

Send a blocking SNMP-GET request.

Parameters

pdu	- Pdu to send
target	- Target for the get

Returns: SNMP_CLASS_SUCCES or a negative error code

virtual int Snmp::get	(	Pdu &	pdu,
		const SnmpTarget &	target,
		const snmp_callback	callback,
		const void *	callback_data = `0`
	)

virtual

Send a async SNMP-GET request.

Parameters

pdu	- Pdu to send
target	- Target for the get
callback	- User callback function to use
callback_data	- User definable data pointer

Returns: SNMP_CLASS_SUCCES or a negative error code

virtual int Snmp::get_bulk	(	Pdu &	pdu,
		const SnmpTarget &	target,
		const int	non_repeaters,
		const int	max_reps
	)

virtual

Send a blocking SNMP-GETBULK request.

Parameters

pdu	- Pdu to send
target	- Target for the getbulk
non_repeaters	- number of non repeaters
max_reps	- maximum number of repetitions

Returns: SNMP_CLASS_SUCCES or a negative error code

virtual int Snmp::get_bulk	(	Pdu &	pdu,
		const SnmpTarget &	target,
		const int	non_repeaters,
		const int	max_reps,
		const snmp_callback	callback,
		const void *	callback_data = `0`
	)

virtual

Send a async SNMP-GETBULK request.

Parameters

pdu	- Pdu to send
target	- Target for the getbulk
non_repeaters	- number of non repeaters
max_reps	- maximum number of repetitions
callback	- User callback function to use
callback_data	- User definable data pointer

Returns: SNMP_CLASS_SUCCES or a negative error code

EventListHolder* Snmp::get_eventListHolder ( )

inline

Definition at line 544 of file uxsnmp.h.

const IpAddress& Snmp::get_listen_address ( ) const

inline

Definition at line 516 of file uxsnmp.h.

virtual int Snmp::get_next	(	Pdu &	pdu,
		const SnmpTarget &	target
	)

virtual

Send a blocking SNMP-GETNEXT request.

Parameters

pdu	- Pdu to send
target	- Target for the getnext

Returns: SNMP_CLASS_SUCCES or a negative error code

virtual int Snmp::get_next	(	Pdu &	pdu,
		const SnmpTarget &	target,
		const snmp_callback	callback,
		const void *	callback_data = `0`
	)

virtual

Send a async SNMP-GETNEXT request.

Parameters

pdu	- Pdu to send
target	- Target for the getnext
callback	- User callback function to use
callback_data	- User definable data pointer

Returns: SNMP_CLASS_SUCCES or a negative error code

snmp_callback Snmp::get_notify_callback ( )

inline

Get a pointer to the callback function used for trap reception.

Returns: Pointer to the function set through notify_register()

Definition at line 489 of file uxsnmp.h.

void* Snmp::get_notify_callback_data ( )

inline

Get a pointer to the data that is passed to the callback function.

Returns: Pointer to the data set through notify_register()

Definition at line 496 of file uxsnmp.h.

virtual int Snmp::get_notify_filter	(	OidCollection &	trapids,
		TargetCollection &	targets
	)

virtual

Get notify register info.

Parameters

trapids	- ids listened for
targets	- targets listened for

Returns: SNMP_CLASS_SUCCESS or SNMP_CLASS_INVALID if not registered

static const char* Snmp::get_version ( )

static

Get the version of the snmp++ library.

Returns: The version of the snmp++ lib at runtime.

virtual int Snmp::inform	(	Pdu &	pdu,
		const SnmpTarget &	target
	)

virtual

Send a blocking INFORM-REQ.

Parameters

pdu	- Pdu to send
target	- Target for the inform

Returns: SNMP_CLASS_SUCCES or a negative error code

virtual int Snmp::inform	(	Pdu &	pdu,
		const SnmpTarget &	target,
		const snmp_callback	callback,
		const void *	callback_data = `0`
	)

virtual

Send a async INFORM-REQ.

Parameters

pdu	- Pdu to send
target	- Target for the inform
callback	- User callback function to use
callback_data	- User definable data pointer

Returns: SNMP_CLASS_SUCCES or a negative error code

void Snmp::init	(	int &	status,
		IpAddress *	[2],
		const unsigned short	port_v4,
		const unsigned short	port_v6
	)

protected

Common init function used by constructors.

bool Snmp::is_running ( void ) const

inlineprotected

Check for the status of the worker thread.

Returns: BOOL - TRUE - if running, FALSE - otherwise

Definition at line 552 of file uxsnmp.h.

void Snmp::map_action	(	unsigned short	action,
		unsigned short &	pdu_action
	)

protected

long Snmp::MyMakeReqId ( )

protected

Generate a unique (for this Snmp obect) request id.

Returns: Unique id between PDU_MIN_RID and PDU_MAX_RID

virtual int Snmp::notify_get_listen_port ( )

virtual

Get the port that is used for listening to traps and informs.

virtual int Snmp::notify_register	(	const OidCollection &	trapids,
		const TargetCollection &	targets,
		const snmp_callback	callback,
		const void *	callback_data = `0`
	)

virtual

Register to get traps and informs.

Note: Every call to one of the notify_register() methods overwrites the previous given values.

Parameters

trapids	- ids to listen for
targets	- targets to listen for
callback	- User callback function to use
callback_data	- User definable data pointer

Returns: SNMP_CLASS_SUCCESS, SNMP_CLASS_TL_FAILED or SNMP_CLASS_TL_IN_USE

virtual void Snmp::notify_set_listen_port ( const int port )

virtual

Set the port for listening to traps and informs.

Note: This function must be called before notify_register(), otherwise the default port is used.

virtual int Snmp::notify_unregister ( )

virtual

Unregister to get traps and informs.

Undo the call to notify_register().

Returns: Always SNMP_CLASS_SUCCESS

static void* Snmp::process_thread ( void * arg )

staticprotected

This is a working thread for the recovery of the pending events.

Parameters

pSnmp [in] pointer to the whole object

Returns: int 0 - if succesful, 1 - in the case of error

virtual int Snmp::report	(	Pdu &	pdu,
		const SnmpTarget &	target
	)

virtual

Send a SNMPv3-REPORT.

Parameters

pdu	- Pdu to send
target	- Target for the report (must be a UTarget)

Returns: SNMP_CLASS_SUCCES or a negative error code

virtual int Snmp::response	(	Pdu &	pdu,
		const SnmpTarget &	target,
		const SnmpSocket	fd = `INVALID_SOCKET`
	)

virtual

Send a RESPONSE.

Parameters

pdu	- Pdu to send
target	- Target for the response
fd	- file descriptor to use, should be the one that was passed to the callback function

Returns: SNMP_CLASS_SUCCES or a negative error code

virtual int Snmp::send_raw_data	(	unsigned char *	send_buf,
		size_t	send_len,
		UdpAddress &	address,
		SnmpSocket	fd = `INVALID_SOCKET`
	)

virtual

Send raw UDP data.

This method may be used to send any data to the recepient.

Parameters

send_buf	- Data buffer
send_len	- Length of the data
address	- Recepient
fd	- socket to use, if not specified, the socket of the object is used

Returns: 0 on success, -1 on failure

virtual int Snmp::set	(	Pdu &	pdu,
		const SnmpTarget &	target
	)

virtual

Send a blocking SNMP-SET request.

Parameters

pdu	- Pdu to send
target	- Target for the set

Returns: SNMP_CLASS_SUCCES or a negative error code

virtual int Snmp::set	(	Pdu &	pdu,
		const SnmpTarget &	target,
		const snmp_callback	callback,
		const void *	callback_data = `0`
	)

virtual

Send a async SNMP-SET request.

Parameters

pdu	- Pdu to send
target	- Target for the set
callback	- User callback function to use
callback_data	- User definable data pointer

Returns: SNMP_CLASS_SUCCES or a negative error code

int Snmp::snmp_engine	(	Pdu &	pdu,
		long int	non_reps,
		long int	max_reps,
		const SnmpTarget &	target,
		const snmp_callback	cb,
		const void *	cbd,
		SnmpSocket	fd = `INVALID_SOCKET`,
		int	reports_received = `0`
	)

protected

gets, sets and get nexts go through here....

This mf does all snmp sending and reception except for traps which are sent using trap().

Note: that for a UTarget with an empty engine id the Utarget::set_engine_id() may be called.

static void Snmp::socket_cleanup ( )

static

Shut down the Winsock library (WSACleanup).

static void Snmp::socket_startup ( )

static

Initialize the Winsock library (WSAStartup).

Note: on Win32 this method must be called before creating Snmp or Address objects.

bool Snmp::start_poll_thread ( const int timeout )

Start one thread listening for responses and notifications.

This method is used to start response and notification processing in a multi threadded setup.

Note: start_poll_thread() itself is not thread safe. The caller must make sure that only one thread is calling start_poll_thread() or stop_poll_thread() at any point in time.

Parameters

timeout - Timeout for each call of the select() or poll() system call.

Returns: true if the thread is now running and false if it failed to start.

void Snmp::stop_poll_thread ( )

Stop the thread listening for responses and notifications.

This method is used to stop the thread started with start_poll_thread().

Note: stop_poll_thread() itself is not thread safe. The caller must make sure that only one thread is calling start_poll_thread() or stop_poll_thread() at any point in time.

virtual int Snmp::trap	(	Pdu &	pdu,
		const SnmpTarget &	target
	)

virtual

Send a SNMP-TRAP.

Parameters

pdu	- Pdu to send
target	- Target for the trap

Returns: SNMP_CLASS_SUCCES or a negative error code

Friends And Related Function Documentation

void deleteV3Callback ( struct Snmp::V3CallBackData *& cbData )

friend

void v3CallBack	(	int	reason,
		Snmp *	snmp,
		Pdu &	pdu,
		SnmpTarget &	target,
		void *	v3cd
	)

friend

Member Data Documentation

long Snmp::current_rid

protected

Definition at line 639 of file uxsnmp.h.

EventListHolder* Snmp::eventListHolder

protected

Definition at line 646 of file uxsnmp.h.

SnmpSocket Snmp::iv_snmp_session

protected

Definition at line 633 of file uxsnmp.h.

IpAddress Snmp::listen_address

protected

Definition at line 638 of file uxsnmp.h.

bool Snmp::m_bThreadRunning

private

Definition at line 650 of file uxsnmp.h.

pthread_t Snmp::m_hThread

private

Definition at line 661 of file uxsnmp.h.

int Snmp::m_iPollTimeOut

private

Definition at line 651 of file uxsnmp.h.

snmp_callback Snmp::notifycallback

protected

Definition at line 642 of file uxsnmp.h.

void* Snmp::notifycallback_data

protected

Definition at line 643 of file uxsnmp.h.

The documentation for this class was generated from the following file:

uxsnmp.h

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
