snmpTargetAddrEntry Class Reference

snmpTargetAddrEntry More...

#include <snmp_target_mib.h>

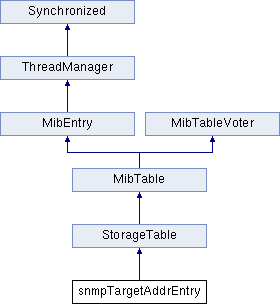

Inheritance diagram for snmpTargetAddrEntry:
StorageTable MibTable MibEntry MibTableVoter ThreadManager Synchronized

Public Member Functions

 snmpTargetAddrEntry ()

virtual ~snmpTargetAddrEntry ()

virtual bool refers_to (NS_SNMP OctetStr &)

virtual NS_SNMP Address * get_address (MibTableRow *)
 Return the address stored in the given row of the receiver.

List< MibTableRow > * get_rows_cloned_for_tag (const NS_SNMP OctetStr &)
 Return the rows that match a given tag.

void set_row (MibTableRow *r, const Oidx &, const NS_SNMP OctetStr &, int, int, const NS_SNMP OctetStr &, const NS_SNMP OctetStr &, int, int)

MibTableRowadd_entry (const NS_SNMP OctetStr &, const Oidx &, const NS_SNMP OctetStr &, const NS_SNMP OctetStr &, const NS_SNMP OctetStr &)
 Add a new target entry to the receiver.

bool ready_for_service (Vbx *, int)
 Check if row can be set active.

- Public Member Functions inherited from StorageTable
 StorageTable (const StorageTable &)
 Copy constructor.

 StorageTable (const Oidx &)
 Constructor with object identifier with single index object like string or oid with implied length.

 StorageTable (const Oidx &, unsigned int)
 Constructor with object identifier and single index object's index length (meassured in subidentifiers).

 StorageTable (const Oidx &, unsigned int, bool)
 Constructor with object identifier and given fixed index length.

 StorageTable (const Oidx &, const index_info *, unsigned int)
 Constructor with object identifier and given index structure.

virtual ~StorageTable ()
 Destructor.

virtual void add_storage_col (StorageType *)
 Add the StorageType column to the table.

void set_storage_type (MibTableRow *, int)
 Set storage type of the specified row.

virtual void reset ()
 Removes all rows that are not permanent and not read-only.

- Public Member Functions inherited from MibTable
 MibTable (const MibTable &)
 Copy constructor.

 MibTable (const Oidx &)
 Constructor with object identifier with single index object like string or oid with implied length.

 MibTable (const Oidx &, int)
 Constructor with object identifier and single index object's index length (meassured in subidentifiers).

 MibTable (const Oidx &, int, bool)
 Constructor with object identifier and given fixed index length.

 MibTable (const Oidx &, const index_info *, unsigned int)
 Constructor with object identifier and given index structure.

virtual ~MibTable ()
 Destructor.

mib_type type () const
 Return the type of the receiver.

virtual MibEntryPtr clone ()
 Clone the receiver object.

virtual void add_col (MibLeaf *)
 Add a column to the receiver table.

virtual void add_col (snmpRowStatus *)
 Add a row status column to the receiver table.

virtual void replace_col (unsigned int, MibLeaf *)
 Replace a column of the table.

virtual bool serialize (char *&, int &)
 Serialize the values of the receiver table.

virtual bool deserialize (char *, int &)
 Read the value of the receiver from a byte stream.

virtual OidxPtr max_key ()
 Return the immediate successor of the greatest object identifier within the receiver's scope.

virtual void update (Request *)
 This method is called by a Mib instance whenever it needs to know how many rows the receiver contains.

virtual bool is_empty ()
 Return whether the table is empty or not.

virtual int set_value (Request *, int)
 Set a value of column in a row of the receiver table.

virtual void get_request (Request *, int)
 Let the receiver process a SNMP GET subrequest.

virtual void get_next_request (Request *, int)
 Let the receiver process a SNMP GETNEXT subrequest.

virtual int commit_set_request (Request *, int)
 Let the receiver commit a SNMP SET subrequest.

virtual int prepare_set_request (Request *, int &)
 Let the receiver prepare a SNMP SET subrequest.

virtual int undo_set_request (Request *, int &)
 Let the receiver undo a SNMP SET subrequest.

virtual void cleanup_set_request (Request *, int &)
 Free any resources allocated for a SET request (i.e., undo information).

virtual MibTableRowadd_row (const Oidx &)
 Add a row with the given index to the table.

virtual MibTableRowinit_row (const Oidx &, Vbx *)
 Initialize a row with values.

virtual void remove_row (const Oidx &)
 Remove a row with the given index from the table and call row_delete before.

virtual void row_init (MibTableRow *, const Oidx &, MibTable *t=0)
 Is called after a new row has been initialized (i.e., after it has been loaded from persistent storage)

virtual void row_added (MibTableRow *, const Oidx &, MibTable *t=0)
 Is called after a new row has been created and automatic index generation has taken place.

virtual void row_delete (MibTableRow *, const Oidx &, MibTable *t=0)
 Is called before a row is deleted by MibTable.

virtual void row_activated (MibTableRow *, const Oidx &, MibTable *t=0)
 Is called when a row is activated by a SET request setting the row�s snmpRowStatus object to active(1).

virtual void row_deactivated (MibTableRow *, const Oidx &, MibTable *t=0)
 Is called when a row is deactivated by a SET request setting the row�s snmpRowStatus object to notInService(2).

virtual Oidx get_next_avail_index () const
 Return the next available index value for the receiver table, that can be used be a manager to create a new row.

MibTableRowfind_index (const Oidx &) const
 Find the row within the receiver table with a given index.

Oidx index (const Oidx &) const
 Returns the index part of a given oid (relative to the receiver).

virtual bool is_index_valid (const Oidx &) const
 Check whether the given index is a valid index for the receiver table.

Oidx base (const Oidx &)
 Returns the base of an oid.

virtual void get_contents (Vbx **&, int &, int &, int=rowActive)
 Return all (active) rows as a two dimensional array of Vbx objects.

OidList< MibTableRow > * rows ()
 Return a pointer to the internal list of rows.

virtual List< MibTableRow > * get_rows (int=rowActive)
 Return all (active) rows as a list of pointers to the corresponding MibTableRow instances.

virtual List< MibTableRow > * get_rows_cloned (int=rowActive)
 Return all (active) rows as a list of pointers to the corresponding MibTableRow instances.

virtual List< MibTableRow > * get_rows_cloned (const Oidx *, int=rowActive)
 Return those (active) rows as a list of pointers to the corresponding MibTableRow instances, of which the index starts with the given prefix.

virtual int size ()
 Return the size of the table meassured in rows.

virtual void add_voter (MibTableVoter *)
 Add a MibTableVoter instance that listens for row status transition events and votes for or against commiting such a transition.

virtual void remove_voter (MibTableVoter *)
 Remove a MibTableVoter listener.

virtual void add_listener (MibTable *)
 Add a listener that will be informed about row additions or deletions.

virtual void remove_listener (MibTable *)
 Remove a listener that no longer wants to be informed about row additions or deletions.

void fire_row_changed (int, MibTableRow *, const Oidx &)
 Fire the row changed event to the receiver and all its listeners.

ListCursor< MibTable > * get_listeners ()
 Gets a cursor on the listeners for this table's row events.

bool has_listeners () const
 Checks whether this table has any listeners for row events.

virtual void clear ()
 Removes all rows from this table.

virtual MibTableRowget_columns ()
 Gets the columns (a.k.a.

MibLeaffind (const Oidx &) const
 Find a MibLeaf object of the receiver with a given oid.

virtual MibLeaffind_next (const Oidx &)
 Find the lexicographical successor MibLeaf object to a given oid.

MibLeaffind_prev (const Oidx &)
 Find the lexicographical predessor MibLeaf object to a given oid.

MibLeafget (int, int)
 Return the MibLeaf object of the receiver at a given position.

virtual void reinit ()
 Reinitialize the table.

- Public Member Functions inherited from MibEntry
 MibEntry ()
 Default constructor.

 MibEntry (const Oidx &, mib_access)
 Construct a MibEntry instance with a given object identifier and maximum access rights.

 MibEntry (const MibEntry &)
 Copy constructor.

virtual ~MibEntry ()
 Destructor.

virtual void load_from_file (const char *)
 Load the value(s) of the receiver node from a file.

virtual void save_to_file (const char *)
 Save the value(s) of the receiver node to a file.

virtual void notify_change (const Oidx &, mib_change)
 Notify all registered nodes of changes to an object managed by the receiver node.

virtual void register_for_notifications (MibEntry *)
 Register an MibEntry object to receive notifications about changes of the receiver node.

virtual void add_change_notification (MibEntry *e)
 Wrapper function for register_for_notifications.

virtual void change_notification (const Oidx &, mib_change)
 Receive a notification about changes to a managed object.

OidxPtr key ()
 Return a pointer to the key (object identifier) of the receiver.

virtual mib_access get_access ()
 Return the maximum access rights for the managed object represented by the receiver node.

virtual bool is_volatile ()
 Check whether the entry is volatile or not.

int operator< (const MibEntry &) const

int operator> (const MibEntry &) const

int operator== (const MibEntry &) const

int operator< (const Oidx &) const

int operator> (const Oidx &) const

int operator<= (const Oidx &) const

int operator>= (const Oidx &) const

int operator== (const Oidx &) const

- Public Member Functions inherited from ThreadManager
 ThreadManager ()
 Default constructor.

virtual ~ThreadManager ()
 Destructor.

void start_synch ()
 Start synchronized execution.

void end_synch ()
 End synchronized execution.

- Public Member Functions inherited from Synchronized
 Synchronized ()

 ~Synchronized ()

void wait ()
 Causes current thread to wait until another thread invokes the notify() method or the notifyAll() method for this object.

bool wait (unsigned long timeout)
 Causes current thread to wait until either another thread invokes the notify() method or the notifyAll() method for this object, or a specified amount of time has elapsed.

void notify ()
 Wakes up a single thread that is waiting on this object's monitor.

void notify_all ()
 Wakes up all threads that are waiting on this object's monitor.

bool lock ()
 Enter a critical section.

TryLockResult trylock ()
 Try to enter a critical section.

bool unlock ()
 Leave a critical section.

- Public Member Functions inherited from MibTableVoter
 MibTableVoter ()

virtual ~MibTableVoter ()

virtual int is_transition_ok (MibTable *, MibTableRow *, const Oidx &, int, int)
 Check whether a transition from an old to a new RowStatus value is allowed.


Static Public Attributes

static snmpTargetAddrEntryinstance


Additional Inherited Members

- Public Types inherited from Synchronized
enum  TryLockResult { LOCKED = 1, BUSY = 0, OWNED = -1 }

- Static Public Member Functions inherited from ThreadManager
static void start_global_synch ()
 Start global synchronized execution.

static void end_global_synch ()
 End global synchronized execution.

- Protected Member Functions inherited from StorageTable
virtual bool is_persistent (MibTableRow *)
 Check whether the given row should be serialized or not.

- Protected Attributes inherited from MibTable
Oidx upper

MibTableRow generator

OidList< MibTableRowcontent

unsigned int index_len

index_infoindex_struc

snmpRowStatusrow_status

Timer row_timeout

OrderedList< MibTableRownotready_rows

OrderedList< MibTableRowdelete_rows

List< MibTablelisteners

List< MibTableVotervoters


Detailed Description

snmpTargetAddrEntry

A transport address to be used in the generation of SNMP operations.

Entries in the snmpTargetAddrTable are created and deleted using the snmpTargetAddrRowStatus object."

Version
3.5.16

Constructor & Destructor Documentation

snmpTargetAddrEntry::snmpTargetAddrEntry ( )
virtual snmpTargetAddrEntry::~snmpTargetAddrEntry ( )
virtual

Member Function Documentation

MibTableRow* snmpTargetAddrEntry::add_entry ( const NS_SNMP OctetStr &  ,
const Oidx ,
const NS_SNMP OctetStr &  ,
const NS_SNMP OctetStr &  ,
const NS_SNMP OctetStr &
)

Add a new target entry to the receiver.

Parameters
namea unique identifier used to identify the new entry.
tdomainspecifies the transport type of the address defined by taddress.
taddressspecifies the target address. The format of this value depends on the tdomain value. For example, if tdomain specifies UDP (1.3.6.1.6.1.1), then this value will be a 6-byte OctetStr, where the first 4 bytes specify the IP address, and last 2 bytes specify the UDP port number.
taglista list of tag values that tie this table to both the snmpNotifyTable and the snmpProxyTable. These tags are used to identify target addresses to send notifications to and forward messages to.
paramsidentifies a row in the snmpTargetParamsTable. This in effect specifies the SNMP parameters to use when generating messages.
Returns
the created row or 0 if a row with name already exists.
virtual NS_SNMP Address* snmpTargetAddrEntry::get_address ( MibTableRow )
virtual

Return the address stored in the given row of the receiver.

Note
Don't use other rows! This method is not synchronized!
The caller has to delete the returned pointer.
Parameters
rowa row of snmpTargetAddrEntry.
Returns
a pointer to an Address instance or 0 if the domain of row is not supported.
List<MibTableRow>* snmpTargetAddrEntry::get_rows_cloned_for_tag ( const NS_SNMP OctetStr &  )

Return the rows that match a given tag.

The rows are cloned and the method is synchronized on the receiver.

Note
The caller has to delete the returned pointer.
Parameters
tagan OctetStr instance.
Returns
a (possibly empty) list of rows.
bool snmpTargetAddrEntry::ready_for_service ( Vbx ,
int
)
virtual

Check if row can be set active.

Reimplemented from MibTable.

virtual bool snmpTargetAddrEntry::refers_to ( NS_SNMP OctetStr &  )
virtual
void snmpTargetAddrEntry::set_row ( MibTableRow r,
const Oidx ,
const NS_SNMP OctetStr &  ,
int  ,
int  ,
const NS_SNMP OctetStr &  ,
const NS_SNMP OctetStr &  ,
int  ,
int
)

Member Data Documentation

snmpTargetAddrEntry* snmpTargetAddrEntry::instance
static

The documentation for this class was generated from the following file:
