MibLeaf Class Reference

An instance of the class MibLeaf represents a leaf object in the managed object registration tree. More...

#include <mib.h>

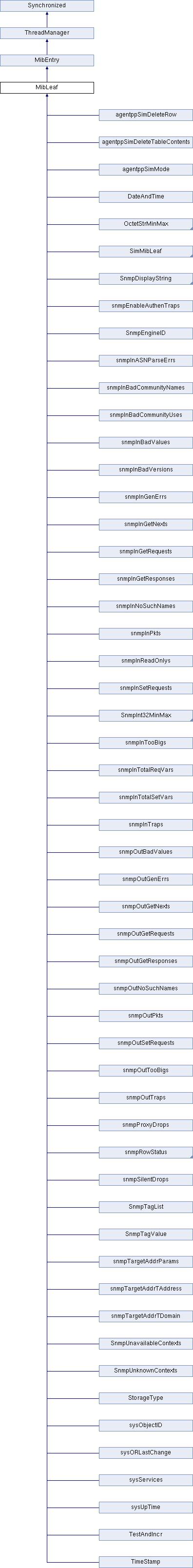

Inheritance diagram for MibLeaf:
MibEntry ThreadManager Synchronized agentppSimDeleteRow agentppSimDeleteTableContents agentppSimMode DateAndTime OctetStrMinMax SimMibLeaf SnmpDisplayString snmpEnableAuthenTraps SnmpEngineID snmpInASNParseErrs snmpInBadCommunityNames snmpInBadCommunityUses snmpInBadValues snmpInBadVersions snmpInGenErrs snmpInGetNexts snmpInGetRequests snmpInGetResponses snmpInNoSuchNames snmpInPkts snmpInReadOnlys snmpInSetRequests SnmpInt32MinMax snmpInTooBigs snmpInTotalReqVars snmpInTotalSetVars snmpInTraps snmpOutBadValues snmpOutGenErrs snmpOutGetNexts snmpOutGetRequests snmpOutGetResponses snmpOutNoSuchNames snmpOutPkts snmpOutSetRequests snmpOutTooBigs snmpOutTraps snmpProxyDrops snmpRowStatus snmpSilentDrops SnmpTagList SnmpTagValue snmpTargetAddrParams snmpTargetAddrTAddress snmpTargetAddrTDomain SnmpUnavailableContexts SnmpUnknownContexts StorageType sysObjectID sysORLastChange sysServices sysUpTime TestAndIncr TimeStamp

Public Member Functions

 MibLeaf ()
 Default constructor.

 MibLeaf (const Oidx &, mib_access, NS_SNMP SmiUINT32)
 Construct a MibLeaf object.

 MibLeaf (const Oidx &, mib_access, NS_SNMP SnmpSyntax *)
 Construct a MibLeaf object.

 MibLeaf (const Oidx &, mib_access, NS_SNMP SnmpSyntax *, int)
 Construct a MibLeaf object.

 MibLeaf (const MibLeaf &)
 Copy Constructor.

virtual ~MibLeaf ()
 Destructor.

virtual void init (NS_SNMP SnmpSyntax *, int)
 Initialize a MibLeaf object.

virtual mib_type type () const
 Return the type of the receiver.

virtual MibEntryPtr clone ()
 Clone the receiver object.

virtual bool serialize (char *&, int &)
 Serialize the value of the receiver.

virtual bool deserialize (char *, int &)
 Read the value of the receiver from a byte stream.

virtual NS_SNMP SmiUINT32 get_syntax () const
 Get the syntax of the receiver's value.

virtual Vbx get_value () const
 Get the value of the receiver.

virtual int get_value (NS_SNMP SnmpSyntax &s) const
 Get the value of the receiver.

virtual int get_value (int &i) const
 Get the value of the receiver.

virtual int get_value (long &i) const
 Get the value of the receiver.

virtual int get_value (unsigned long &i) const
 Get the value of the receiver.

virtual int get_value (char *c) const
 Get the value of the receiver.

virtual void set_value (const NS_SNMP SnmpSyntax &)
 Set the value of the receiver by value.

virtual void set_value (const unsigned long)
 Set the unsigned integer value of the receiver.

virtual int set_value (const Vbx &)
 Set the value of the receiver from a variable binding and checks for validity of the variable binding and compatible syntax and oid.

virtual void replace_value (NS_SNMP SnmpSyntax *s)
 Set the value of the receiver by reference.

virtual OidxPtr max_key ()
 Return the immediate successor of the greatest object identifier within the receiver's scope.

virtual void get_request (Request *, int)
 Interface methods dispatch table <-> instrumentation.

virtual void get_next_request (Request *, int)
 Let the receiver process a SNMP GETNEXT subrequest.

virtual int commit_set_request (Request *, int)
 Let the receiver commit a SNMP SET subrequest.

virtual int prepare_set_request (Request *, int &)
 Let the receiver prepare a SNMP SET subrequest.

virtual int undo_set_request (Request *, int &)
 Let the receiver undo a SNMP SET subrequest.

virtual void cleanup_set_request (Request *, int &)
 Clean up resources used for performing (or undoing) set requests.

virtual bool value_ok (const Vbx &)
 Check whether the receiver's value may be set to the given new value.

virtual int set (const Vbx &vb)
 Set the receiver's value and backup its old value for a later undo.

virtual int unset ()
 Undo a previous set.

MibTableget_reference_to_table ()
 Return a pointer to the table the receiver belongs to.

MibTableRowget_reference_to_row ()
 Return a pointer to the row the receiver belongs to.

int valid ()
 Gets the flags (bits) that determine the type/stage of validity of the leaf's value.

bool has_default ()
 Return whether the receiver has a default value.

bool is_locked ()
 Return whether the receiver has a default value.

void set_reference_to_table (MibTable *t)
 Set the receiver's reference to its table.

void set_reference_to_row (MibTableRow *r)
 Set the receiver's reference to its row.

void set_access (mib_access a)
 Set the maximum access rights of the receiver.

Oidx get_oid () const
 Get the instance OID of the MibLeaf object.

- Public Member Functions inherited from MibEntry
 MibEntry ()
 Default constructor.

 MibEntry (const Oidx &, mib_access)
 Construct a MibEntry instance with a given object identifier and maximum access rights.

 MibEntry (const MibEntry &)
 Copy constructor.

virtual ~MibEntry ()
 Destructor.

virtual Oidx find_succ (const Oidx &, Request *req=0)
 Return the successor of a given object identifier within the receiver's scope and the context of a given Request.

virtual void load_from_file (const char *)
 Load the value(s) of the receiver node from a file.

virtual void save_to_file (const char *)
 Save the value(s) of the receiver node to a file.

virtual bool is_empty ()
 Check whether the receiver node contains any instance of a managed object.

virtual void notify_change (const Oidx &, mib_change)
 Notify all registered nodes of changes to an object managed by the receiver node.

virtual void register_for_notifications (MibEntry *)
 Register an MibEntry object to receive notifications about changes of the receiver node.

virtual void add_change_notification (MibEntry *e)
 Wrapper function for register_for_notifications.

virtual void change_notification (const Oidx &, mib_change)
 Receive a notification about changes to a managed object.

OidxPtr key ()
 Return a pointer to the key (object identifier) of the receiver.

virtual mib_access get_access ()
 Return the maximum access rights for the managed object represented by the receiver node.

virtual bool is_volatile ()
 Check whether the entry is volatile or not.

virtual void reset ()
 Resets (clears) the content of this entry.

int operator< (const MibEntry &) const

int operator> (const MibEntry &) const

int operator== (const MibEntry &) const

int operator< (const Oidx &) const

int operator> (const Oidx &) const

int operator<= (const Oidx &) const

int operator>= (const Oidx &) const

int operator== (const Oidx &) const

- Public Member Functions inherited from ThreadManager
 ThreadManager ()
 Default constructor.

virtual ~ThreadManager ()
 Destructor.

void start_synch ()
 Start synchronized execution.

void end_synch ()
 End synchronized execution.

- Public Member Functions inherited from Synchronized
 Synchronized ()

 ~Synchronized ()

void wait ()
 Causes current thread to wait until another thread invokes the notify() method or the notifyAll() method for this object.

bool wait (unsigned long timeout)
 Causes current thread to wait until either another thread invokes the notify() method or the notifyAll() method for this object, or a specified amount of time has elapsed.

void notify ()
 Wakes up a single thread that is waiting on this object's monitor.

void notify_all ()
 Wakes up all threads that are waiting on this object's monitor.

bool lock ()
 Enter a critical section.

TryLockResult trylock ()
 Try to enter a critical section.

bool unlock ()
 Leave a critical section.


Protected Member Functions

int get_value_mode ()
 Return the value handle mode.

void set_validity (int flags)
 Sets the flags (bits) that determine the type/stage of validity of the leaf's value.

void set_syntax (NS_SNMP SmiUINT32)
 Set the syntax of the receiver's value and delete the old value.

void free_value ()
 Frees the receiver's value and sets it to NULL.

- Protected Member Functions inherited from MibEntry
void set_oid (const Oidx &)
 Set the object identifier of the receiver node.


Protected Attributes

NS_SNMP SnmpSyntax * value

NS_SNMP SnmpSyntax * undo

int value_mode

int validity
 Set of flags (bits) that determine the type/stage of validity of the leaf's value.

MibTablemy_table

MibTableRowmy_row

- Protected Attributes inherited from MibEntry
Oidx oid

mib_access access

List< MibEntrynotifies


Friends

class MibTable

class MibTableRow


Additional Inherited Members

- Public Types inherited from Synchronized
enum  TryLockResult { LOCKED = 1, BUSY = 0, OWNED = -1 }

- Static Public Member Functions inherited from ThreadManager
static void start_global_synch ()
 Start global synchronized execution.

static void end_global_synch ()
 End global synchronized execution.


Detailed Description

An instance of the class MibLeaf represents a leaf object in the managed object registration tree.

MibLeaf objects can be used to model scalar managed objects as well as objects of SNMP tables. The objects of a table are defined by defining their corresponding columnar objects. The instances of each columnar object (which is itself not accessible) are then cloned from it.

In order to save memory space, from version 3.4.7 on the key() method does no longer return the complete OID (instance OID) of columnar MibLeaf objects (thus MibLeaf objects that are part of a table). Instead, MibLeaf::key() only returns the last subid that identifies the column the MibLeaf is part of. From v3.4.7 on, there is the get_oid() method that returns the entiry OID value for columnar objects as well as for other MibLeaf objects. For columnar objects this method computes the OID value from the table's OID plus the MibLeaf's column (key()), and the row's index value.

MibLeaf is a sub-class of the abstract MibEntry class. As MibLeaf represents a managed object instance a MibLeaf object contains management information. So each MibLeaf object contains a pointer "value" to that management information which can be any object derived from SnmpSyntax.

Author
Frank Fock
Version
3.4.7

Constructor & Destructor Documentation

MibLeaf::MibLeaf ( )

Default constructor.

MibLeaf::MibLeaf ( const Oidx ,
mib_access  ,
NS_SNMP  SmiUINT32
)

Construct a MibLeaf object.

Parameters
o- The object identifier of the managed object. If it is part of a table, only the column subidentifier is given. If it is a scalar object the object identifier given includes the full registration oid including the suffix ".0".
a- The maximum access rights for the managed object.
s- The syntax of the managed object.
See Also
Oidx, mib_access
MibLeaf::MibLeaf ( const Oidx ,
mib_access  ,
NS_SNMP SnmpSyntax *
)

Construct a MibLeaf object.

Parameters
o- The object identifier of the managed object. If it is part of a table, only the column subidentifier is given. If it is a scalar object the object identifier given includes the full registration oid including the suffix ".0".
a- The maximum access rights for the managed object.
s- A pointer to the SnmpSyntax object to be used for storing the value of the managed object. NOTE: Do not delete this pointer from outside MibLeaf. It will be deleted by ~MibLeaf
See Also
Oidx, mib_access
MibLeaf::MibLeaf ( const Oidx ,
mib_access  ,
NS_SNMP SnmpSyntax *  ,
int
)

Construct a MibLeaf object.

Parameters
oidthe object identifier of the managed object. If it is part of a table, only the column subidentifier is given. If it is a scalar object the object identifier given includes the full registration oid including the suffix ".0".
accessthe maximum access rights for the managed object.
valuea pointer to the SnmpSyntax object to be used for storing the value of the managed object. NOTE: Do not delete this pointer from outside MibLeaf. It will be deleted by ~MibLeaf
valueModecontains an ored value of one or more of the following modes: VMODE_DEFAULT: the value of the object pointed by value will be used as default value, otherwise the managed object has no default value. VMODE_LOCKED: value is locked (cannot be modified) while the row status of the receiver's row is active(1). This mode has no effect, if the the leaf is a scalar or otherwise if the receiver's row has no snmpRowStatus.
MibLeaf::MibLeaf ( const MibLeaf )

Copy Constructor.

virtual MibLeaf::~MibLeaf ( )
virtual

Destructor.

Member Function Documentation

virtual void MibLeaf::cleanup_set_request ( Request ,
int &
)
virtual

Clean up resources used for performing (or undoing) set requests.

Parameters
req- A pointer to the whole SNMP SET request.
ind- The index of the subrequest to be processed.

Reimplemented from MibEntry.

virtual MibEntryPtr MibLeaf::clone ( )
virtual
virtual int MibLeaf::commit_set_request ( Request ,
int
)
virtual

Let the receiver commit a SNMP SET subrequest.

Parameters
req- A pointer to the whole SNMP SET request.
ind- The index of the subrequest to be processed.
Returns
SNMP_ERROR_SUCCESS on success and SNMP_ERROR_COMITFAIL on failure.

Reimplemented from MibEntry.

Reimplemented in agentppSimDeleteTableContents, and agentppSimDeleteRow.

virtual bool MibLeaf::deserialize ( char *  ,
int &
)
virtual

Read the value of the receiver from a byte stream.

Parameters
bufa pointer to the input byte stream.
szthe size of the input buffer. On output it contains the size remaining unread in the input buffer.
Returns
TRUE if deserialization was successful, FALSE otherwise.

Reimplemented from MibEntry.

void MibLeaf::free_value ( )
protected

Frees the receiver's value and sets it to NULL.

virtual void MibLeaf::get_next_request ( Request ,
int
)
virtual

Let the receiver process a SNMP GETNEXT subrequest.

Parameters
req- A pointer to the whole SNMP GETNEXT request.
ind- The index of the subrequest to be processed.

Reimplemented from MibEntry.

Oidx MibLeaf::get_oid ( ) const
inline

Get the instance OID of the MibLeaf object.

If the leaf object is a columnar object then the instancce OID will be computed from the table's OID, plus the subidentifier of the leaf's column, and the row's index OID.

Returns
the instance OID of the leaf object.
MibTableRow* MibLeaf::get_reference_to_row ( )
inline

Return a pointer to the row the receiver belongs to.

Returns
A Pointer to the row the receiver is in, if the receiver is a scalar managed object return 0.
MibTable* MibLeaf::get_reference_to_table ( )
inline

Return a pointer to the table the receiver belongs to.

Returns
A Pointer to the table the receiver is in, if the receiver is a scalar managed object return 0.
virtual void MibLeaf::get_request ( Request ,
int
)
virtual
virtual NS_SNMP SmiUINT32 MibLeaf::get_syntax ( ) const
virtual

Get the syntax of the receiver's value.

Returns
The syntax of a MibLeaf object's value or sNMP_SYNTAX_NULL, if the object has no value.
virtual Vbx MibLeaf::get_value ( ) const
virtual

Get the value of the receiver.

Returns
A variable binding that holds the object identifier and the value of the receiver.
virtual int MibLeaf::get_value ( NS_SNMP SnmpSyntax &  s) const
inlinevirtual

Get the value of the receiver.

Parameters
s- A reference to a SnmpSyntax object to hold a copy of the receiver's value.
Returns
SNMP_ERROR_SUCCESS on success.
virtual int MibLeaf::get_value ( int &  i) const
inlinevirtual

Get the value of the receiver.

Parameters
i- A reference to an int the receiver's value will be copied in.
Returns
SNMP_ERROR_SUCCESS on success.
virtual int MibLeaf::get_value ( long &  i) const
inlinevirtual

Get the value of the receiver.

Parameters
i- A reference to a long the receiver's value will be copied in.
Returns
SNMP_ERROR_SUCCESS on success.
virtual int MibLeaf::get_value ( unsigned long &  i) const
inlinevirtual

Get the value of the receiver.

Parameters
i- A reference to an unsigned long the receiver's value will be copied in.
Returns
SNMP_ERROR_SUCCESS on success.
virtual int MibLeaf::get_value ( char *  c) const
inlinevirtual

Get the value of the receiver.

Parameters
c- A pointer to a string the receiver's value will be copied in.
Returns
SNMP_ERROR_SUCCESS on success.
int MibLeaf::get_value_mode ( )
inlineprotected

Return the value handle mode.

Returns
a integer value describing how to handle the receiver's value.
See Also
constructor for details
bool MibLeaf::has_default ( )
inline

Return whether the receiver has a default value.

Returns
TRUE if the receiver has a default value, FALSE otherwise.
virtual void MibLeaf::init ( NS_SNMP SnmpSyntax *  ,
int
)
virtual

Initialize a MibLeaf object.

This method is typically called either from a constructor with value or when loading a value from persistent storage.

Parameters
initialValuea pointer to a SnmpSyntax object which will hold the value of this MibLeaf object.
valueModecontains an ored value of one or more of the following modes: VMODE_DEFAULT: the value of the object pointed by value will be used as default value, otherwise the managed object has no default value. VMODE_LOCKED: value is locked (cannot be modified) while the row status of the receiver's row is active(1). This mode has no effect, if the the leaf is a scalar or otherwise if the receiver's row has no snmpRowStatus.

Reimplemented in agentppSimMode.

bool MibLeaf::is_locked ( )
inline

Return whether the receiver has a default value.

Returns
TRUE if the receiver has a default value, FALSE otherwise.
virtual OidxPtr MibLeaf::max_key ( )
inlinevirtual

Return the immediate successor of the greatest object identifier within the receiver's scope.

Returns
a pointer to the non including upper bound of the receiver's scope

Reimplemented from MibEntry.

virtual int MibLeaf::prepare_set_request ( Request ,
int &
)
virtual

Let the receiver prepare a SNMP SET subrequest.

Parameters
req- A pointer to the whole SNMP SET request.
ind- The index of the subrequest to be processed.
Returns
SNMP_ERROR_SUCCESS on success and SNMP_ERROR_WRONG_VALUE, SNMP_ERROR_WRONG_TYPE, or SNMP_ERROR_NOT_WRITEABLE on failure.

Reimplemented from MibEntry.

Reimplemented in OctetStrMinMax, snmpRowStatus, TestAndIncr, SnmpTagValue, SnmpEngineID, snmpTargetAddrParams, agentppSimDeleteTableContents, SnmpDisplayString, agentppSimDeleteRow, and snmpTargetAddrTAddress.

virtual void MibLeaf::replace_value ( NS_SNMP SnmpSyntax *  s)
virtual

Set the value of the receiver by reference.

Parameters
v- A pointer to the new value.
virtual bool MibLeaf::serialize ( char *&  ,
int &
)
virtual

Serialize the value of the receiver.

Parameters
buf- A pointer to byte stream buffer returned.
sz- The size of the buffer returned.
Returns
TRUE if serialization was successful, FALSE otherwise.

Reimplemented from MibEntry.

virtual int MibLeaf::set ( const Vbx vb)
virtual

Set the receiver's value and backup its old value for a later undo.

Note
Override this mehtod in subclasses.
Parameters
vb- The variable binding that holds the new value.
Returns
SNMP_ERROR_SUCCESS if the new value has been set, SNMP_ERROR_WRONG_TYPE or SNMP_ERROR_BAD_VALUE otherwise.

Reimplemented in snmpRowStatus, VacmViewTreeFamilyTableStatus, TestAndIncr, and agentppSimMode.

void MibLeaf::set_access ( mib_access  a)
inline

Set the maximum access rights of the receiver.

Parameters
a- The maximum access rights.
void MibLeaf::set_reference_to_row ( MibTableRow r)
inline

Set the receiver's reference to its row.

Parameters
t- A pointer to a MibTableRow instance.
void MibLeaf::set_reference_to_table ( MibTable t)
inline

Set the receiver's reference to its table.

Parameters
t- A pointer to a MibTable instance.
void MibLeaf::set_syntax ( NS_SNMP  SmiUINT32)
protected

Set the syntax of the receiver's value and delete the old value.

Parameters
syntax- The syntax of a MibLeaf object's value.
void MibLeaf::set_validity ( int  flags)
inlineprotected

Sets the flags (bits) that determine the type/stage of validity of the leaf's value.

If any bit is set the leaf is supposed to contain a valid value. AGENT++ only uses the first 4 bits (0-3). The other bits can be used by the API programmer to track internal states of the leaf.

Parameters
flagsan integer value representing the validity of the receiver.
virtual void MibLeaf::set_value ( const NS_SNMP SnmpSyntax &  )
virtual

Set the value of the receiver by value.

Parameters
v- The value.
virtual void MibLeaf::set_value ( const unsigned  long)
virtual

Set the unsigned integer value of the receiver.

Caution: The syntax of this MibLeaf instance will be set to sNMP_SYNTAX_INT32! Thus, it should be only used for objects with an INTEGER syntax.

Parameters
l- The new integer value.
Deprecated:
Use set_value(const SnmpSyntax&) instead.
virtual int MibLeaf::set_value ( const Vbx )
virtual

Set the value of the receiver from a variable binding and checks for validity of the variable binding and compatible syntax and oid.

Parameters
vb- The variable binding including the new value.
Returns
SNMP_ERROR_SUCCESS if the new value has been set, SNMP_ERROR_WRONG_TYPE or SNMP_ERROR_BAD_VALUE otherwise.
virtual mib_type MibLeaf::type ( ) const
virtual

Return the type of the receiver.

Returns
LEAF

Reimplemented from MibEntry.

virtual int MibLeaf::undo_set_request ( Request ,
int &
)
virtual

Let the receiver undo a SNMP SET subrequest.

Parameters
req- A pointer to the whole SNMP SET request.
ind- The index of the subrequest to be processed.
Returns
SNMP_ERROR_SUCCESS on success and SNMP_ERROR_UNDO_FAIL on failure.

Reimplemented from MibEntry.

virtual int MibLeaf::unset ( )
virtual

Undo a previous set.

Returns
SNMP_ERROR_SUCCESS on success and SNMP_ERROR_UNDO_FAIL on failure.

Reimplemented in snmpRowStatus.

int MibLeaf::valid ( )
inline

Gets the flags (bits) that determine the type/stage of validity of the leaf's value.

If any bit is set the leaf is supposed to contain a valid value. AGENT++ only uses the first 4 bits (0-3). The other bits can be used by the API programmer to track internal states of the leaf.

Returns
an integer value != 0 if the receiver has a valid value.
virtual bool MibLeaf::value_ok ( const Vbx )
inlinevirtual

Check whether the receiver's value may be set to the given new value.

Note
Override this mehtod in subclasses.
Parameters
v- A new value.
Returns
TRUE if the new value is valid, otherwise FALSE.

Reimplemented in SnmpInt32MinMax, snmpRowStatus, StorageType, TestAndIncr, snmpEnableAuthenTraps, SnmpTagList, SnmpTagValue, snmpTargetAddrParams, SnmpDisplayString, agentppSimMode, and snmpTargetAddrTDomain.

Friends And Related Function Documentation

friend class MibTable
friend
friend class MibTableRow
friend

Member Data Documentation

MibTableRow* MibLeaf::my_row
protected
MibTable* MibLeaf::my_table
protected
NS_SNMP SnmpSyntax* MibLeaf::undo
protected
int MibLeaf::validity
protected

Set of flags (bits) that determine the type/stage of validity of the leaf's value.

If any bit is set the leaf is supposed to contain a valid value. AGENT++ only uses the first 4 bits (0-3). The other bits can be used by the API programmer to track internal states of the leaf.

NS_SNMP SnmpSyntax* MibLeaf::value
protected
int MibLeaf::value_mode
protected

The documentation for this class was generated from the following file:
